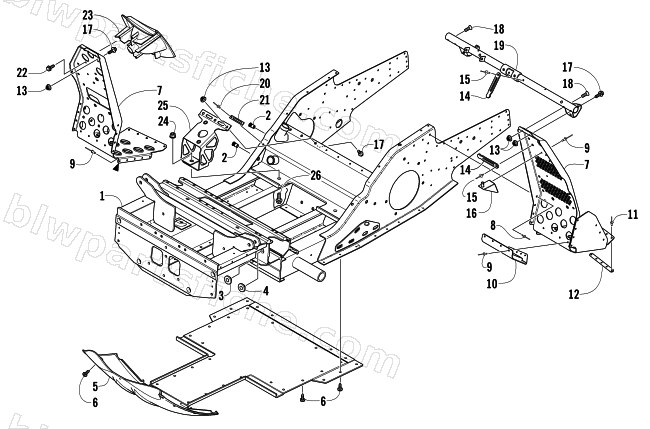

2006 Arctic Cat ZR 900 EFI SNO PRO — FRONT FRAME AND FOOTREST ASSEMBLY
2006 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-922 | CHASSIS, FRT END-ASSY | 1 | $1,082.95 | |
| 2 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 3 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 4 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 5 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 2606-444 | FOOTREST, RH | 1 | $100.95 | |
| 7 | 2606-733 | FOOTREST,LH-W/HOLES | 1 | $92.95 | |
| 8 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 2606-458 | PLATE, BACKING-FOOTREST-RH | 1 | $14.95 | |
| 10 | 2606-459 | PLATE, BACKING-FOOTREST-LH | 1 | $13.95 | |
| 11 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 14 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 15 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 16 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 17 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 18 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 19 | 0705-940 | SUPPORT,STEERING-PTD BLK | 1 | $85.95 | |
| 20 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 22 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 23 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 24 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 25 | 0708-398 | BRKT, ENG MTG-L/W-PTD BLK | 1 | $33.95 | |
| 26 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 |
