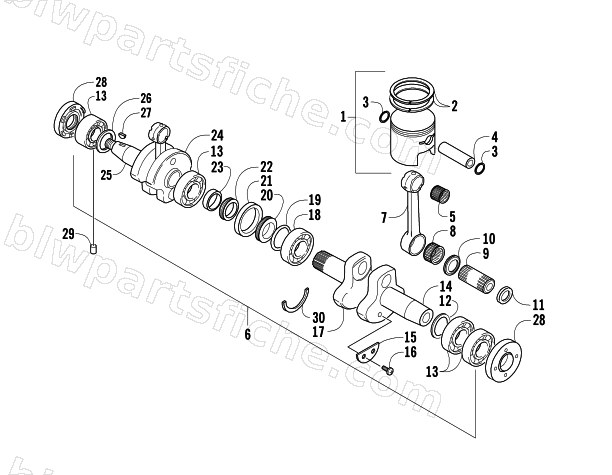

2006 Arctic Cat Z 440 LX — PISTON AND CRANKSHAFT
2006 Z 440 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-412 | PISTON ASSY (Z440) | 1 | $230.95 | |
| 2 | 3006-413 | RING SET,PISTON 03 440 F/C | 1 | $124.95 | |
| 3 | 3002-041 | CIRCLIP,PISTON PIN,M16 | 1 | $1.95 | |
| 4 | 3003-298 | PIN,PISTON | 1 | $27.95 | |
| 5 | 3002-805 | BEARING,PISTON PIN,ROLLER,M16X21X19.6 | 1 | $37.95 | |
| 6 | 3005-921 | CRANKSHAFT ( 440F/C-B ) | 1 | $2,292.95 | |
| 7 | 3005-005 | ROD, CONNECTING | 1 | $270.95 | |
| 8 | 3003-744 | BEARING,CRANK PIN,ROLLER,M22 | 1 | $113.95 | |
| 9 | 3002-173 | PIN,CRANK | 1 | $73.95 | |
| 10 | 3005-458 | WASHER, CRANK PIN BEARING | 1 | $20.95 | |
| 11 | 3005-450 | SHIM, M22X27X0.4 | 1 | $4.40 | |
| 12 | 3002-025 | WASHER,M34X47X1 | 1 | $2.75 | |
| 13 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 14 | 3005-345 | CRANKSHAFT, LH | 1 | $512.95 | |
| 15 | 3004-746 | BALANCER, CRANKSHAFT | 1 | $35.95 | |
| 16 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 17 | 3002-841 | CRANKSHAFT, MIDDLE | 1 | $385.95 | |
| 18 | 3006-095 | BEARING,'02 440 F/C SNO PRO | 1 | $126.95 | |
| 19 | 3003-112 | RING, CENTER | 1 | $23.39 | |
| 20 | 3003-171 | RACE, CRANKSHAFT SEAL | 1 | $49.95 | |
| 21 | 3003-248 | RETAINER, MIDDLE | 1 | $82.95 | |
| 22 | 3005-373 | GEAR, OIL PUMP DRIVE | 1 | $94.95 | |
| 23 | 3002-827 | SPACER,M30 | 1 | $22.95 | |
| 24 | 3005-915 | WHEEL, CRANKSHAFT | 1 | $249.95 | |
| 25 | 3005-344 | CRANKSHAFT, R | 1 | $556.95 | |
| 26 | 3008-501 | WASHER,35MM | 1 | $3.85 | |
| 27 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 28 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 29 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 30 | 3003-736 | C-RING,CRANKSHAFT,M65 | 1 | $13.95 |
