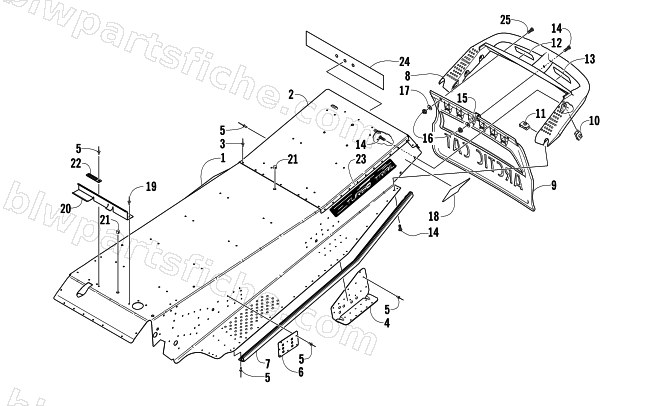

2006 Arctic Cat T660 TURBO TRAIL — TUNNEL AND REAR BUMPER
2006 T660 TURBO TRAIL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-976 | TUNNEL,S/P ASSY-PTD BLK | 1 | $720.95 | |
| 2 | 1606-486 | PLATE, END-REAR TUNNEL-PTD | 1 | $113.95 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 3 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 4 | 1706-902 | BRKT, SUSP-RH-PTD BLK | 1 | $69.95 | |
| 4 | 1706-903 | BRKT, SUSP-LH-PTD BLK | 1 | $36.95 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 7 | 2606-424 | ROLL,TUNNEL-RH-PTD BLK | 1 | $62.95 | |
| 7 | 2606-423 | ROLL,TUNNEL-LH-PTD BLK | 1 | $62.95 | |
| 8 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 9 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 10 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 11 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 12 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 13 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 14 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 18 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 19 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 20 | 0707-704 | BRKT, MAIN HARNESS PROTECTOR-PTD BLK | 1 | $17.95 | |
| 21 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 6611-818 | DECAL, TUNNEL, RH-T660 1-UP BLACK | 1 | $36.95 | |
| 23 | 6611-819 | DECAL, TUNNEL, LH-T660 1-UP BLACK | 1 | $36.95 | |
| 24 | 6611-821 | DECAL, TUNNEL, REAR-T660 1-UP BLACK | 1 | $56.95 | |
| 25 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 |
