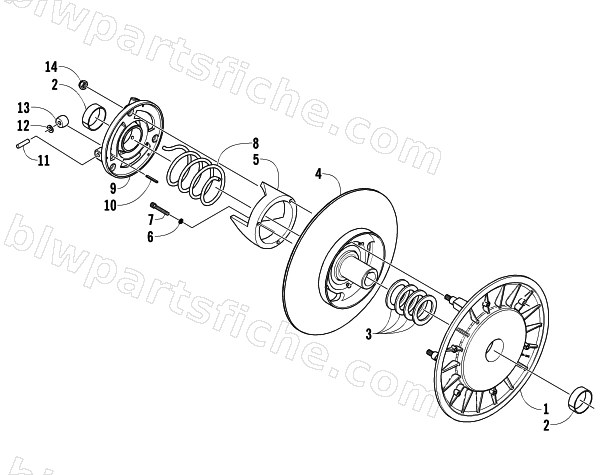

2006 Arctic Cat T660 TURBO TOURING — DRIVEN CLUTCH
2006 T660 TURBO TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-229 | CLUTCH, DRIVEN-LG (57/50-R/W) | 1 | $584.95 | |
| 0 | 0726-265 | CLUTCH, DRIVEN-10.4 (50/36 PLAT) | 1 | $713.95 | |
| 1 | 0748-019 | SHEAVE,MOVEABLE-W/BEARING | 1 | $437.95 | |
| 1 | 0748-666 | CAM,DRIVEN-50/36 DEG W/ BRG-ASSY | 1 | $201.95 | |
| 1 | 0748-679 | CAM,DRIVEN-42/36 DEG W/ BRG-ASSY | 1 | $200.95 | |
| 2 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 2 | 0648-433 | RING,SNAP-1 3/4 VH175 | 1 | $3.02 | |
| 3 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 | |
| 3 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 | |
| 4 | 0648-713 | SEAT, SPRING-DRIVEN | 1 | $3.57 | |
| 5 | 0648-016 | BRKT, TORQUE - 57/50 DEG | 1 | $177.95 | |
| 5 | 0648-662 | SPRING, DRIVEN-PLATINUM | 1 | $124.95 | |
| 5 | 0648-732 | SPRING,DRIVEN-110/280 LBS (GREEN) | 1 | $125.95 | |
| 6 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 6 | 0648-753 | SPACER, ACT DRIVEN - CASTED CAM | 1 | $5.51 | |
| 7 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 7 | 0748-620 | SHEAVE,STATIONARY-10.4"DIA-ASSY | 1 | $215.95 | |
| 8 | 0648-114 | SPRING, DRIVEN-RED/WHITE | 1 | $82.95 | |
| 9 | 0748-018 | PLATE,ROLLER-ASSY | 1 | $97.95 | |
| 9 | 0648-139 | ROLLER,DRIVEN CLUTCH | 1 | $12.35 | |
| 10 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 11 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 11 | 0637-322 | UPDATE KIT,TORQUE BRACKET RETAINER | 1 | $19.25 | |
| 12 | 0648-082 | WASHER,THRUST-PLASTIC ROLLER | 1 | $1.92 | |
| 13 | 0648-079 | ROLLER,DRIVEN CLUTCH-PLASTIC | 1 | $15.11 | |
| 13 | 1623-517 | SCREW,MACH-TSBH 10-24X1.25 W/2353 | 1 | $3.80 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 14 | 0648-453 | SEAT,SPRING-DRVN | 1 | $7.03 |
