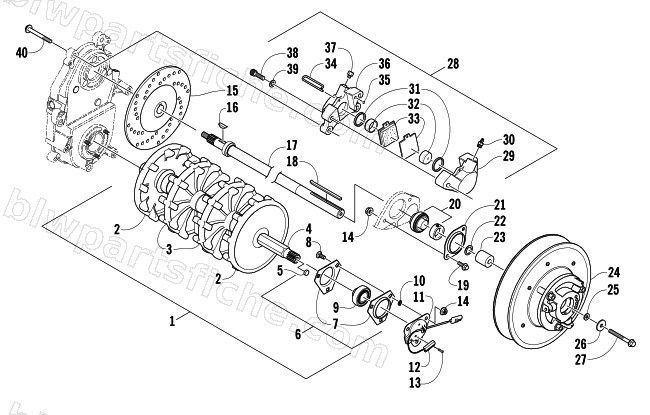

2006 Arctic Cat T660 TURBO TOURING — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2006 T660 TURBO TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-117 | TRACK/DRIVE ASSY-TURBO (4 SPROCKET) | 1 | $464.95 | |
| 2 | 1602-203 | SPROCKET,DRIVE-9T OUTER-7.150 | 1 | $57.95 | |
| 3 | 1602-507 | SPROCKET, DRIVE 9T 7.15 (.125 GROOVE) | 1 | $57.95 | |
| 4 | 1602-585 | SHAFT,DRIVE-HEX (TURBO) | 1 | $377.95 | |
| 5 | 0630-167 | MAGNET,DISC-.438 | 1 | $15.11 | |
| 6 | 0702-567 | PLATE,FLANGE-BEARING ASSY | 1 | $106.95 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 9 | 1602-374 | BEARING,1.00-DRIVE SHAFT | 1 | $136.95 | |
| 10 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 11 | 3606-244 | BRKT, SPEEDO SENSOR | 1 | $37.95 | |
| 12 | 0630-178 | SENSOR, SPEEDO-ASSY | 1 | $90.95 | |
| 13 | 0623-462 | SCREW,TAPTITE-PHPNH 6-32X1/4 W Z&C | 1 | $0.35 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 16 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 17 | 0702-562 | SHAFT,DRIVEN-PTD BLK | 1 | $216.95 | |
| 18 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 19 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 20 | 1602-099 | BEARING, RELUBRICATABLE - 1.00 DRIVEN SH | 1 | $54.95 | |
| 21 | 0602-892 | FLANGE,BRG-TWO MTG HOLE | 1 | $16.95 | |
| 22 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 22 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 23 | 0648-769 | STUB, SHAFT-1.125" | 1 | $14.95 | |
| 24 | 0726-229 | CLUTCH, DRIVEN-LG (57/50-R/W) | 1 | $584.95 | |
| 25 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 8020-136 | SCREW,CAP-HFH 5/16-18 X 1.75 G5 Z&Y | 1 | $15.11 | |
| 28 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 30 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 31 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 32 | 0602-708 | PISTON | 1 | $81.95 | |
| 33 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 35 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 37 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 38 | 1623-352 | SCREW,CAP-TXSH 3/8-16 X 2.00 ZINC | 1 | $3.44 | |
| 39 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 40 | 8020-315 | SCREW,CAP-HFH 7/16-14 X1.50 G5 Z&Y | 1 | $2.75 |
