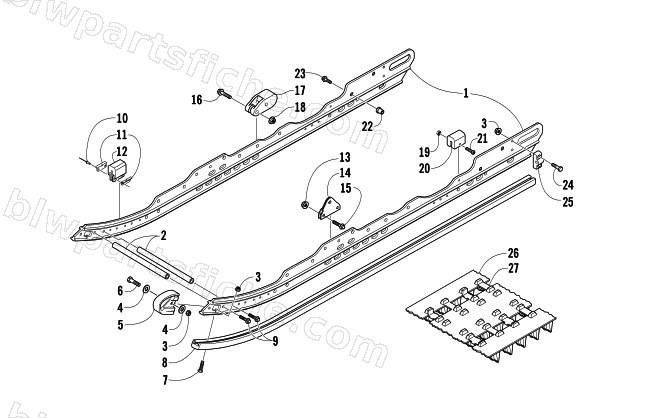

2006 Arctic Cat T660 TURBO TOURING LE — SLIDE RAIL AND TRACK ASSEMBLY
2006 T660 TURBO TOURING LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-712 | RAIL,SUSP-136" STAMPED-FORMED | 1 | $288.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 6 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 15 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 16 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 17 | 1604-413 | BLOCK,SPRING TENSION | 1 | $22.01 | |
| 18 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 19 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 20 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 21 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 22 | 2604-562 | BUSHING, STOP-REAR ARM | 1 | $5.51 | |
| 23 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 24 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 25 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 26 | 2602-003 | TRACK,HACKSAW 136X15X1 | 1 | $1,090.95 | |
| 27 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
