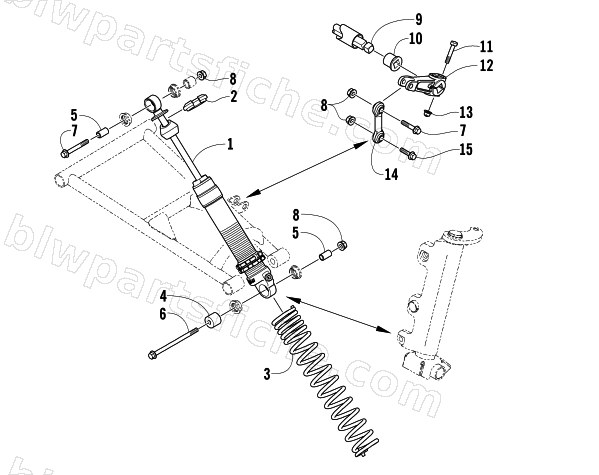

2006 Arctic Cat T660 TURBO ST — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2006 T660 TURBO ST
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-797 | SHOCK,SKI- 17.55" - FOX ZERO PRO | 1 | $503.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 1703-692 | SPRING,COMPRESSION-FIRE RED | 1 | $85.95 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 8 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1703-618 | SWAY BAR,7/16 DIA X 28.72"-PTD BLK | 1 | $133.95 | |
| 10 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 11 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 12 | 2603-307 | ARM, SWAY BAR-W/INSERT | 1 | $110.95 | |
| 13 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 14 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 15 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 |
