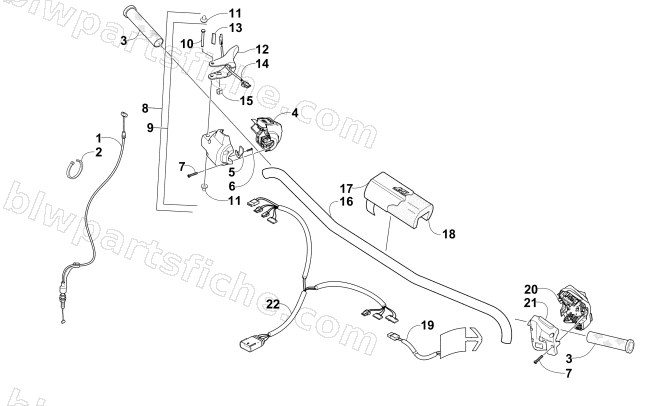

2006 Arctic Cat T660 TURBO ST — HANDLEBAR AND CONTROLS ASSEMBLY
2006 T660 TURBO ST
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0687-189 | CABLE, THROTTLE-SINGLE W/O OIL | 1 | $57.95 | |
| 2 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 3 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 3 | 4606-310 | GRIP,HANDLEBAR-LH-7.50" | 1 | $17.87 | |
| 4 | 0609-754 | CONTROL, R/H-FRONT | 1 | $75.95 | |
| 5 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 6 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 7 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 8 | 0609-886 | CONTROL,THROTTLE-R/H-REAR (35MM) | 1 | $129.95 | |
| 9 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 12 | 0609-796 | LEVER, THROTTLE-35MM | 1 | $28.95 | |
| 13 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 14 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 15 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 16 | 0705-417 | HANDLEBAR,W/HOOKS-PTD BLK | 1 | $77.95 | |
| 17 | 1705-102 | WRAP, HANDLEBAR PAD-ASSY | 1 | $104.95 | |
| 18 | 0619-743 | FOAM, HANDLEBAR PAD-CTL | 1 | $27.95 | |
| 19 | 0609-784 | ELEMENT,HW-RH H/L | 1 | $88.95 | |
| 19 | 0609-785 | ELEMENT,HW-LH H/L | 1 | $92.95 | |
| 20 | 0609-756 | CONTROL, L/H-REAR | 1 | $22.01 | |
| 21 | 0609-758 | CONTROL, L/H-DIMMER-FRONT | 1 | $154.95 | |
| 22 | 1686-296 | HARNESS, HANDLEBAR-06 TURBO ST | 1 | $152.95 |
