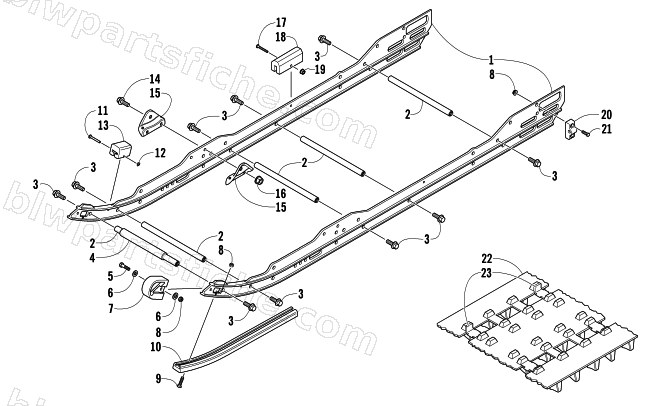

2006 Arctic Cat SABERCAT 700 EFI EXT — SLIDE RAIL AND TRACK ASSEMBLY
2006 SABERCAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-746 | RAIL,SUSP-144"-FORMED | 1 | $297.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 3 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 4 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 13 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 14 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 15 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 16 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 17 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 18 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 | |
| 19 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 20 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 1602-750 | TRACK,13.5X144X1.25 | 1 | $1,414.95 | |
| 23 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
