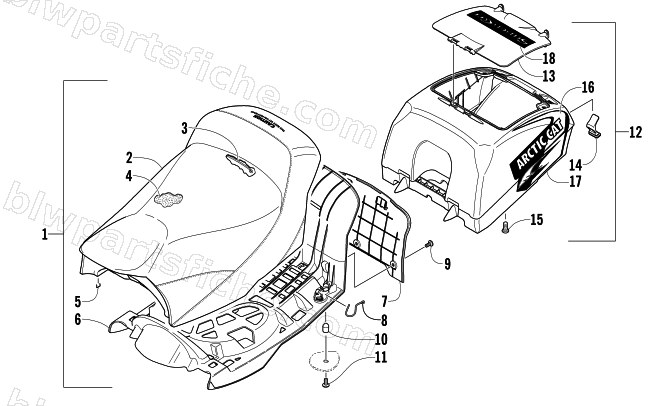

2006 Arctic Cat SABERCAT 600 EFI LX — SEAT AND STORAGE BOX ASSEMBLY
2006 SABERCAT 600 EFI LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-597 | SEAT, MFG ASSY (06 SC BLK) | 1 | $614.95 | |
| 1 | 7998-598 | SEAT, MFG ASSY (06 SC GRN) | 1 | $683.95 | |
| 1 | 7998-599 | SEAT, MFG ASSY (06 SC RED) | 1 | $609.95 | |
| 2 | 3706-041 | COVER, SEAT (06 SC BLK) | 1 | $405.95 | |
| 2 | 3706-042 | COVER, SEAT (06 SC GRN) | 1 | $401.95 | |
| 2 | 3706-043 | COVER, SEAT (06 SC RED) | 1 | $450.95 | |
| 4 | 0717-176 | FOAM, SEAT (85-90 ILD) .48@5.3 | 1 | $140.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 3606-056 | SEAT BASE-STORAGE | 1 | $97.95 | |
| 7 | 3606-248 | PANEL, SEAT-REAR (SABERCAT) | 1 | $21.95 | |
| 8 | 1623-177 | CLIP,RETAINING SPRING-SEAT | 1 | $2.95 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-138 | LATCH, SEAT | 1 | $16.49 | |
| 11 | 8017-667 | SCREW,MACH-TSTRH 5/16-18 X .50 GR2 Z&Y | 1 | $3.16 | |
| 12 | 3606-074 | BOX, STORAGE-MFG ASSY | 1 | $260.95 | |
| 14 | 3606-357 | STRAP, HOLDDOWN-STORAGE | 1 | $3.44 | |
| 15 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 16 | 6611-678 | DECAL, BOX UPR-RH | 1 | $38.95 | |
| 16 | 6611-679 | DECAL, BOX UPR-LH | 1 | $39.95 | |
| 16 | 6611-712 | DECAL,BOX UPR-RH | 1 | $38.95 | |
| 16 | 6611-713 | DECAL,BOX UPR-LH | 1 | $35.95 | |
| 16 | 6611-742 | DECAL, BOX UPR-RH | 1 | $36.95 | |
| 16 | 6611-743 | DECAL, BOX UPR-LH | 1 | $36.95 | |
| 17 | 6611-680 | DECAL, BOX LWR-RH | 1 | $31.95 | |
| 17 | 6611-681 | DECAL, BOX LWR-LH | 1 | $31.95 | |
| 17 | 6611-714 | DECAL,BOX LWR-RH | 1 | $33.95 | |
| 17 | 6611-715 | DECAL,BOX LWR-LH | 1 | $33.95 | |
| 17 | 6611-744 | DECAL, BOX LWR-RH | 1 | $32.95 | |
| 17 | 6611-745 | DECAL, BOX LWR-LH | 1 | $32.95 | |
| 18 | 6611-682 | DECAL, BOX "SABERCAT" | 1 | $136.95 |
