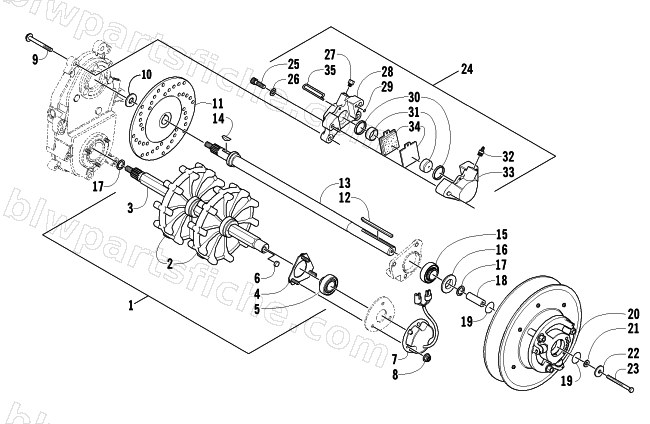

2006 Arctic Cat SABERCAT 500 EFI LX — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2006 SABERCAT 500 EFI LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-114 | TRACK/DRIVE-ASSY(S-CAT)-REV | 1 | $274.95 | |
| 2 | 1602-510 | SPROCKET,DRIVE-9T 7.15 (.125" GROOVE) | 1 | $55.95 | |
| 3 | 1602-551 | SHAFT, DRIVE-REV-1 1/16" | 1 | $430.95 | |
| 4 | 0702-412 | FLANGE, BEARING-INNER ASSY | 1 | $30.95 | |
| 5 | 1602-374 | BEARING,1.00-DRIVE SHAFT | 1 | $136.95 | |
| 6 | 0630-167 | MAGNET,DISC-.438 | 1 | $15.11 | |
| 7 | 0630-165 | REGULATOR, VOLTAGE-3 WIRE | 1 | $129.95 | |
| 8 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 9 | 8020-315 | SCREW,CAP-HFH 7/16-14 X1.50 G5 Z&Y | 1 | $2.75 | |
| 10 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 11 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 12 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 13 | 0702-506 | SHAFT, DRIVEN-ASSY | 1 | $275.95 | |
| 14 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 15 | 1602-233 | BEARING, 1 W/O LOCK | 1 | $32.95 | |
| 16 | 1602-367 | SPACER,DRIVEN CLUTCH | 1 | $22.01 | |
| 17 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 17 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 18 | 0648-042 | SHAFT,STUB-DRIVEN (1.60") | 1 | $22.01 | |
| 19 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 20 | 0726-220 | CLUTCH,DRIVEN-ASSY(500 AA) | 1 | $568.95 | |
| 21 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 23 | 8002-139 | SCREW,CAP-HH 5/16-18 X2.50 G5 Z&Y | 1 | $1.95 | |
| 24 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 25 | 1623-352 | SCREW,CAP-TXSH 3/8-16 X 2.00 ZINC | 1 | $3.44 | |
| 26 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 27 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 29 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 30 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 31 | 0602-708 | PISTON | 1 | $81.95 | |
| 32 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 34 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 |
