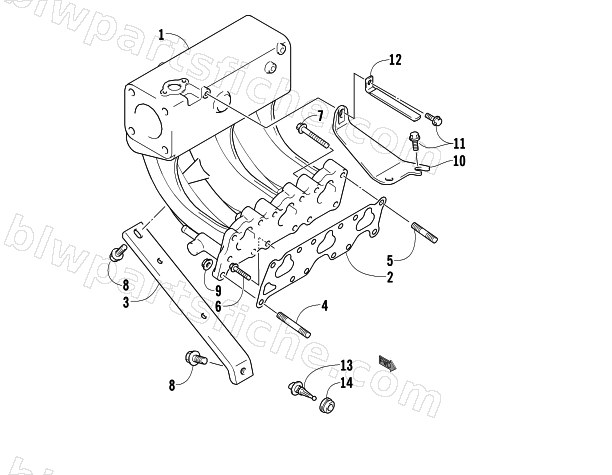

2006 Arctic Cat PANTHER 660 TRAIL — INTAKE MANIFOLD ASSEMBLY
2006 PANTHER 660 TRAIL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-030 | MANIFOLD,INTAKE 660 | 1 | $968.95 | |
| 2 | 3006-205 | GASKET,INTAKE MANIFOLD '02 660 L/C | 1 | $32.95 | |
| 3 | 3006-206 | STIFFENER,INTAKE MANIFOLD '02 660 L/C | 1 | $35.95 | |
| 4 | 3006-372 | STUD BOLT 660L/C | 1 | $4.26 | |
| 5 | 3006-373 | STUD BOLT 660L/C | 1 | $4.26 | |
| 6 | 3007-380 | BOLT | 1 | $3.16 | |
| 7 | 3007-381 | BOLT | 1 | $3.16 | |
| 8 | 3007-382 | BOLT | 1 | $3.16 | |
| 9 | 3007-373 | NUT | 1 | $3.16 | |
| 10 | 3006-578 | STIFFENER | 1 | $28.95 | |
| 11 | 3006-579 | BOLT | 1 | $5.95 | |
| 12 | 3006-580 | CLAMP,BREATHER HOSE | 1 | $4.95 | |
| 13 | 3006-656 | SENSOR, AIR TEMP | 1 | $198.95 | |
| 14 | 3006-657 | GROMMET,AIR TEMP SENSOR | 1 | $16.95 |
