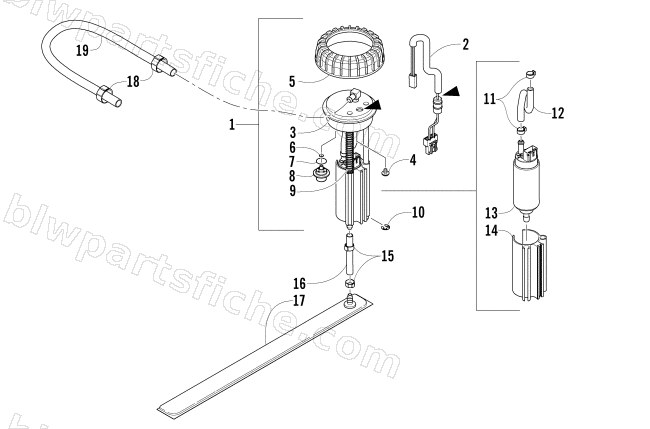

2006 Arctic Cat PANTHER 660 TOURING — FUEL PUMP ASSEMBLY
2006 PANTHER 660 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-598 | PUMP, PFA-45 FUEL RETURNLESS-NO SENS | 1 | $888.95 | |
| 2 | 1670-664 | HARNESS, FUEL PUMP - EFI SYS | 1 | $189.95 | |
| 3 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 | |
| 4 | 1670-412 | SCREW, RETAINING | 1 | $2.95 | |
| 5 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 6 | 1670-532 | O-RING,REGULATOR-SMALL | 1 | $3.71 | |
| 7 | 1670-533 | O-RING,REGULATOR-LARGE | 1 | $3.99 | |
| 8 | 1670-536 | REGULATOR, PRESSURE | 1 | $262.95 | |
| 9 | 1670-156 | SRING, COMPRESSION - FUEL PUMP | 1 | $4.95 | |
| 10 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 11 | 1670-520 | CLAMP,HOSE | 1 | $5.78 | |
| 12 | 1670-521 | HOSE,FUEL | 1 | $92.95 | |
| 13 | 1670-531 | PUMP,FUEL- (V/N F20000107) | 1 | $335.95 | |
| 14 | 1670-413 | HOUSING, FUEL PUMP-SENSOR STYLE | 1 | $75.95 | |
| 15 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 16 | 0610-540 | HOSE, GASLINE-5/16 X 7.75 | 1 | $3.44 | |
| 17 | 1670-525 | FILTER, FUEL-PICK UP | 1 | $45.95 | |
| 18 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 19 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 |
