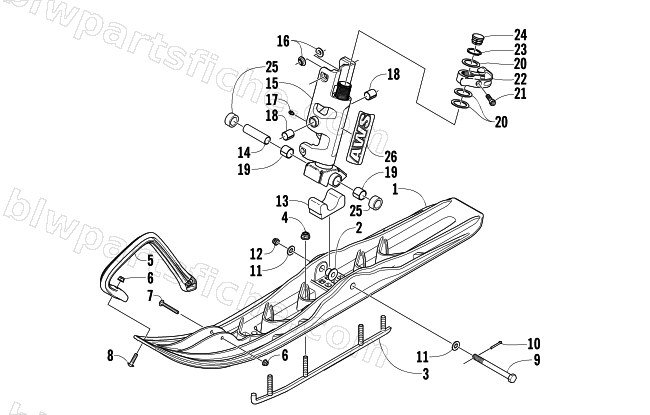

2006 Arctic Cat M7 EFI LE 162 CT — SKI AND SPINDLE ASSEMBLY
2006 M7 EFI LE 162 CT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-586 | SKI,PLASTIC(DEEP KEEL)-BLK | 1 | $264.95 | |
| 2 | 2603-397 | INSERT,SKI | 1 | $15.11 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 6 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 7 | 8017-587 | SCREW,MACH-TSTRH 1/4-20 X 2.0 GR2 Z&Y | 1 | $1.92 | |
| 8 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 9 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 10 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 11 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 12 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 13 | 2603-553 | DAMPER,SKI-NARROW (75 DURO) | 1 | $22.01 | |
| 14 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 15 | 1703-886 | SPINDLE,R/H (BLK)-FAB | 1 | $287.95 | |
| 15 | 1703-887 | SPINDLE,L/H (BLK)-FAB | 1 | $302.95 | |
| 16 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 17 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 18 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 19 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 20 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 21 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 22 | 1703-659 | ARM,STEERING-SPINDLE-PNT BLK | 1 | $66.95 | |
| 23 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 24 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 25 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 26 | 7611-025 | DECAL,SPINDLE (ORN) | 1 | $33.95 |
