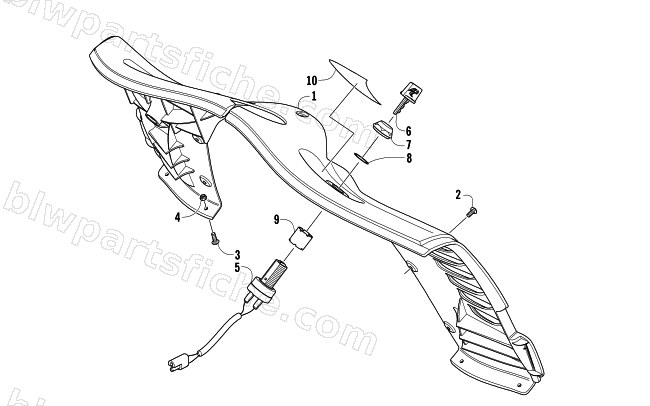

2006 Arctic Cat M7 EFI LE 153 CT — CONSOLE AND SWITCH ASSEMBLY
2006 M7 EFI LE 153 CT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-442 | CONSOLE,EFI | 1 | $174.95 | |
| 2 | 8017-425 | SCREW,MACH-TSTRH 10-24 X 3/8 GR2 BLK | 1 | $0.40 | |
| 3 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 4 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 5 | 0609-728 | SWITCH,IGNITION-NORM OPEN (LOW) | 1 | $54.95 | |
| 7 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 10 | 6611-581 | DECAL,CONSOLE-EFI | 1 | $66.95 |
