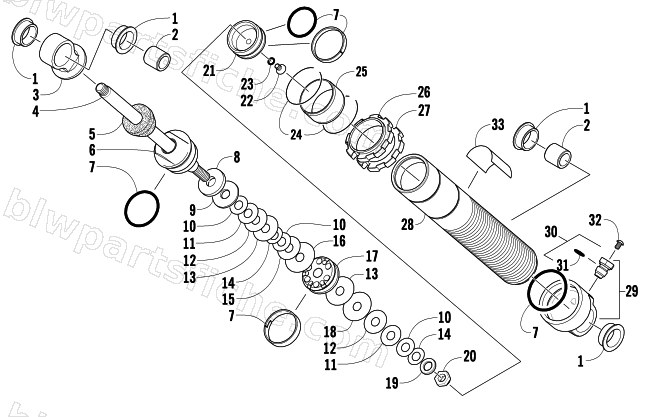

2006 Arctic Cat M7 EFI 153 WEST YELLOWSTONE — FRONT SUSPENSION SHOCK ABSORBER
2006 M7 EFI 153 WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-554 | SHOCK,SKI-40"- ZERO PRO-(FOX)-17.52" | 1 | $515.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 2 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 5 | 2603-459 | BUMPER,FOX SHOCK - 1" | 1 | $44.95 | |
| 6 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 7 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 8 | 2603-474 | SPACER,.504ID X 1.25OD X .250THK 6061AL | 1 | $29.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 11 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 12 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 13 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 14 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 16 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 17 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 18 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 19 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 20 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 21 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 22 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 23 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 24 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 25 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 26 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 27 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 28 | 2603-839 | BODY,SHOCK-1.459 BORE X 8.900 TLG | 1 | $228.95 | |
| 29 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 30 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 31 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 32 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 33 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 |
