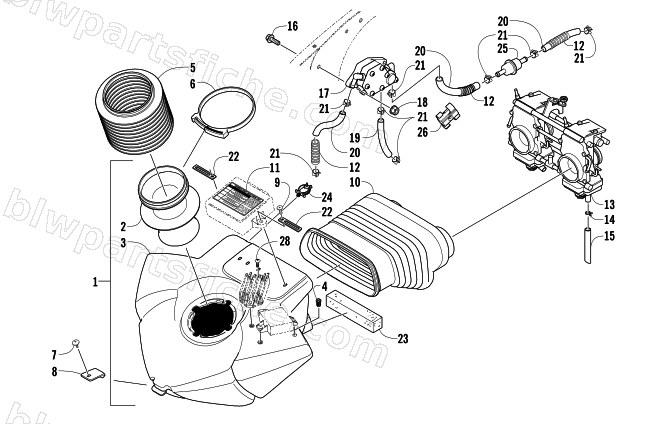

2006 Arctic Cat M7 153 — AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2006 M7 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-735 | SILENCER,AIR-ASSY | 1 | $113.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 0770-734 | SILENCER,AIR-ROUTED | 1 | $97.95 | |
| 4 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 5 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 6 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 7 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 8 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 9 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 10 | 1670-720 | BOOT,CARB-ASSY (600/700) | 1 | $174.95 | |
| 11 | 5611-851 | DECAL,CARB DIAGNOSTIC CODES | 1 | $13.95 | |
| 12 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 13 | 1670-721 | CARB,TM40-B340 | 1 | $853.95 | |
| 14 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 15 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 16 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 17 | 1670-230 | PUMP,FUEL W/O OIL INLET | 1 | $75.95 | |
| 18 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 19 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 20 | 0610-628 | HOSE,GASLINE-25 FT. | 1 | $99.95 | |
| 20 | 0610-629 | HOSE,GAS LINE-100 FT. | 1 | $335.95 | |
| 21 | 1623-234 | CLAMP, HOSE-13.08mm ID | 1 | $1.09 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 0617-485 | FOAM,BELLYPAN/AIRBOX | 1 | $3.16 | |
| 24 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 25 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 26 | 1623-336 | CLIP,HOSE/CABLE-.375/.50 | 1 | $5.37 | |
| 27 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 28 | 8017-402 | SCREW,MACH-TSTRH 10-24X1 GR2 Z&Y | 1 | $1.23 |
