2006 Arctic Cat M7 153 CT — ELECTRICAL
2006 M7 153 CT

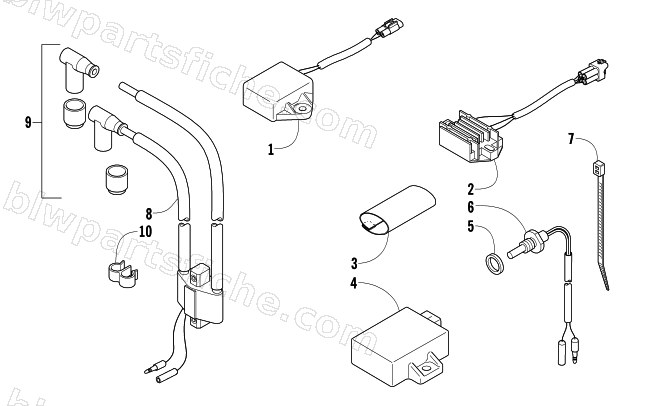

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-733 | CONDENSER,EXH VALVE | 1 | $309.95 | |
| 2 | 3006-732 | REGULATOR,EXH VALVE | 1 | $453.95 | |
| 3 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 4 | 3007-040 | CDI UNIT | 1 | $1,231.95 | |
| 5 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 6 | 3006-725 | SENSOR ASSY,COOLING WATER( R/B 0902-010) | 1 | $149.95 | |
| 7 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 8 | 3006-692 | COIL,IGNITION | 1 | $230.95 | |
| 9 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 10 | 3005-387 | CLIP | 1 | $4.40 |
