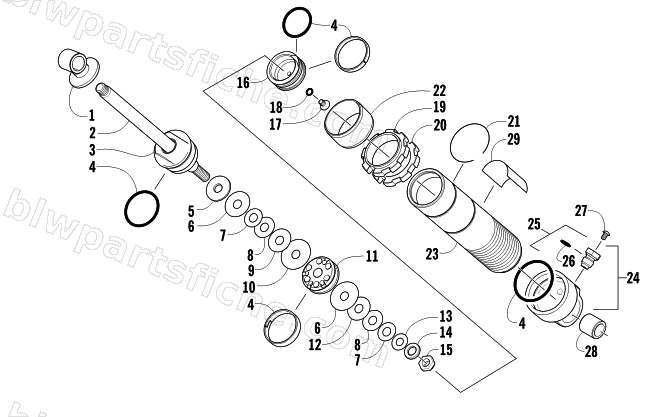

2006 Arctic Cat M6 EFI 141 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2006 M6 EFI 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-318 | SHOCK,FRT ARM-ZERO PRO (FOX) | 1 | $522.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 3 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 4 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 5 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 6 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 7 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 8 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 9 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 10 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 11 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 12 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 13 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 15 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 16 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 17 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 18 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 19 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 20 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 21 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 22 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 23 | 2604-862 | BODY SHOCK,ALUM-5.66" | 1 | $288.95 | |
| 24 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 25 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 26 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 27 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 28 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 29 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 |
