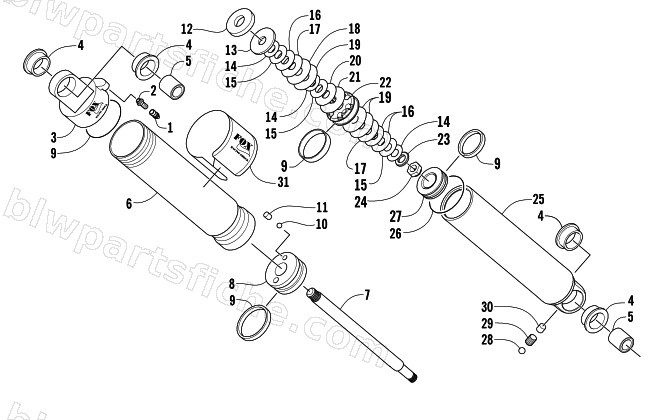

2006 Arctic Cat KING CAT 900 EFI — FRONT SUSPENSION SHOCK ABSORBER
2006 KING CAT 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-494 | SHOCK,SKI-15.80"- FLOAT-ASSY | 1 | $907.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-326 | VALVE,AIR-ASSY - (FOX) | 1 | $24.95 | |
| 3 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-329 | SLEEVE,AIR-ASSY-7.515"-(FLOAT) | 1 | $234.95 | |
| 7 | 2603-332 | ROD,SHOCK-.498 X 7.95 - (FLOAT) | 1 | $129.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 13 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 14 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 16 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 17 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 18 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 19 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 20 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 21 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 22 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2603-335 | BODY,SHOCK-IMPACT ALUM-7.725"- (FLOAT) | 1 | $200.95 | |
| 26 | 0604-810 | O-RING | 1 | $4.95 | |
| 27 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 28 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 29 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 30 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 31 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 |
