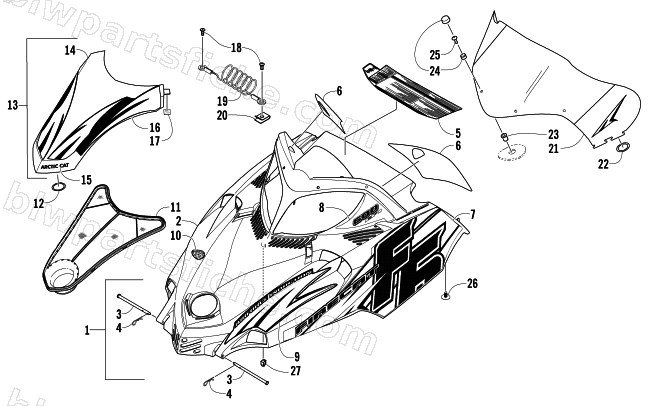

HOOD AND WINDSHIELD ASSEMBLY
2006 FIRECAT 600 EFI R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-892 | HOOD W/DECALS-BLK (F6 R EFI) | 1 | $1,328.95 | |
| 1 | 1718-890 | HOOD W/DECALS-GRN (F6 R EFI) | 1 | $1,328.95 | |
| 1 | 1718-894 | HOOD W/DECALS-ORN (F6 R EFI) | 1 | $1,328.95 | |
| 2 | 1718-667 | HOOD W/O DECALS-BLK LX | 1 | $1,090.95 | |
| 2 | 1718-627 | HOOD W/O DECALS-PEARL CAT GREEN | 1 | $1,090.95 | |
| 2 | 1718-896 | HOOD W/O DECALS-ORN REVERSE | 1 | $1,090.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 5611-483 | DECAL, CAUTION/WARNING-REVERSE | 1 | $99.95 | |
| 6 | 6611-894 | DECAL,HOOD-CONSOLE-BLK RH | 1 | $24.95 | |
| 6 | 6611-895 | DECAL,HOOD-CONSOLE-BLK LH | 1 | $24.95 | |
| 6 | 6611-862 | DECAL,HOOD-CONSOLE-GRN RH | 1 | $65.95 | |
| 6 | 6611-863 | DECAL,HOOD-CONSOLE-GRN LH | 1 | $67.95 | |
| 6 | 6611-926 | DECAL,HOOD-CONSOLE-ORN RH | 1 | $98.95 | |
| 6 | 6611-927 | DECAL,HOOD-CONSOLE-ORN LH | 1 | $90.95 | |
| 7 | 6611-898 | DECAL,HOOD-LWR BLK RH "F6" | 1 | $92.95 | |
| 7 | 6611-899 | DECAL,HOOD-LWR BLK LH "F6" | 1 | $92.95 | |
| 7 | 6611-866 | DECAL,HOOD-LWR GRN RH-"F6" | 1 | $171.95 | |
| 7 | 6611-867 | DECAL,HOOD-LWR GRN LH-"F6" | 1 | $168.95 | |
| 7 | 6611-930 | DECAL,HOOD-LWR ORN RH "F6" | 1 | $259.95 | |
| 7 | 6611-931 | DECAL,HOOD-LWR ORN LH "F6" | 1 | $87.95 | |
| 8 | 6611-906 | DECAL,HOOD LIGHT-BLK RH "600 EFI" | 1 | $21.95 | |
| 8 | 6611-907 | DECAL,HOOD LIGHT-BLK LH "600 EFI" | 1 | $21.95 | |
| 8 | 6611-874 | DECAL,HOOD LIGHT-GRN RH "600 EFI" | 1 | $88.95 | |
| 8 | 6611-875 | DECAL,HOOD LIGHT-GRN LH "600 EFI" | 1 | $88.95 | |
| 8 | 6611-938 | DECAL,HOOD LIGHT-ORN RH "600 EFI" | 1 | $22.01 | |
| 8 | 6611-939 | DECAL,HOOD LIGHT-ORN LH "600 EFI" | 1 | $194.95 | |
| 9 | 6611-910 | DECAL,HOOD-UPR BLK RH | 1 | $54.95 | |
| 9 | 6611-911 | DECAL,HOOD-UPR BLK LH | 1 | $54.95 | |
| 9 | 6611-878 | DECAL,HOOD-UPR GRN RH | 1 | $259.95 | |
| 9 | 6611-879 | DECAL,HOOD-UPR GRN LH | 1 | $84.95 | |
| 9 | 6611-942 | DECAL,HOOD-UPR ORN RH | 1 | $96.95 | |
| 9 | 6611-943 | DECAL,HOOD-UPR ORN LH | 1 | $167.95 | |
| 10 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 11 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 12 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 13 | 1718-844 | COVER, HOOD-BLK W/BLK DECALS | 1 | $245.95 | |
| 13 | 1718-843 | COVER, HOOD-BLK W/GRN DECALS | 1 | $657.95 | |
| 13 | 1718-845 | COVER, HOOD-BLK W/ORN DECALS | 1 | $324.95 | |
| 14 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 15 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 16 | 6611-892 | DECAL,COVER-BLK RH | 1 | $52.95 | |
| 16 | 6611-893 | DECAL,COVER-BLK LH | 1 | $50.95 | |
| 16 | 6611-860 | DECAL,COVER-GRN RH | 1 | $19.25 | |
| 16 | 6611-861 | DECAL,COVER-GRN LH | 1 | $19.25 | |
| 16 | 6611-924 | DECAL,COVER-ORN RH | 1 | $171.95 | |
| 16 | 6611-925 | DECAL,COVER-ORN LH | 1 | $90.95 | |
| 17 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 18 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 19 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 20 | 1623-052 | NUT,U | 1 | $0.95 | |
| 21 | 4606-025 | WINDSHIELD,BLK-W/BLK GRAPHIC | 1 | $193.95 | |
| 21 | 4606-024 | WINDSHIELD,BLK-W/GRN GRAPHIC | 1 | $185.95 | |
| 21 | 4606-026 | WINDSHIELD,BLK-W/ORG GRAPHIC | 1 | $206.95 | |
| 22 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 27 | 0123-394 | CLIP CABLE | 1 | $1.37 |
