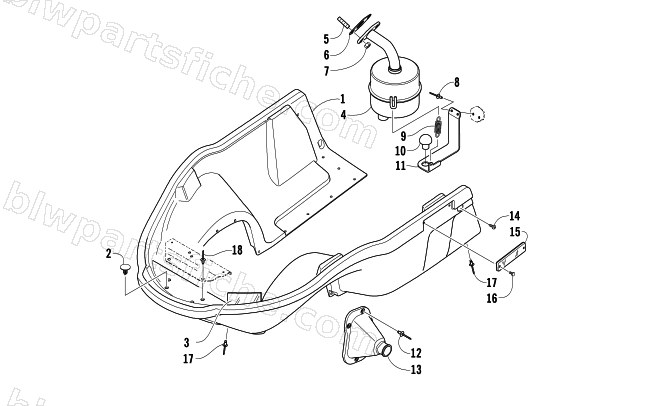

BELLY PAN AND EXHAUST ASSEMBLIES
2006 F 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-072 | R/B 4718-980 | 1 | $230.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 4 | 0712-937 | MUFFLER-PTD BLK | 1 | $146.95 | |
| 5 | 1691-165 | STUD BOLT,M8X16 | 1 | $4.95 | |
| 6 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 7 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 11 | 0712-914 | BRACKET,MUFFLER SUPPORT-PTD BLK | 1 | $15.11 | |
| 12 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 13 | 0605-464 | BOOT,TIE ROD-RH | 1 | $42.95 | |
| 13 | 0605-465 | BOOT,TIE ROD-LH | 1 | $42.95 | |
| 14 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 15 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 16 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 17 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 18 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 |
