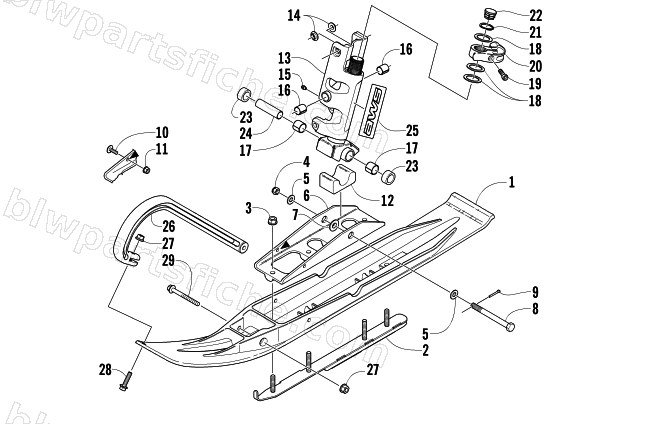

2006 Arctic Cat CROSSFIRE 700 EFI WEST YELLOWSTONE — SKI AND SPINDLE ASSEMBLY
2006 CROSSFIRE 700 EFI WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-958 | SKI, PLASTIC,MACH BLK(W/SKAG GROOVE) | 1 | $234.95 | |
| 2 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 3 | 1603-968 | SPACER,SADDLE | 1 | $4.95 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 6 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 7 | 1703-501 | SADDLE,SKI-W/INSERTS-PTD PLAT | 1 | $101.95 | |
| 8 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 9 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 10 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 11 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 12 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 13 | 2603-553 | DAMPER,SKI-NARROW (75 DURO) | 1 | $22.01 | |
| 14 | 1703-630 | SPINDLE,R/H (PLATINUM)-FAB | 1 | $496.95 | |
| 14 | 1703-631 | SPINDLE,L/H (PLATINUM)-FAB | 1 | $496.95 | |
| 15 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 16 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 17 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 18 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 19 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 20 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 21 | 1703-413 | ARM,STEERING-SPINDLE-PTD PLT | 1 | $66.95 | |
| 22 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 23 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 24 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 25 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 26 | 7611-060 | DECAL,SPINDLE-"AWS" GRN | 1 | $33.95 | |
| 26 | 7611-063 | DECAL,SPINDLE-"AWS" ORN | 1 | $34.95 | |
| 27 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 28 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 29 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 30 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 |
