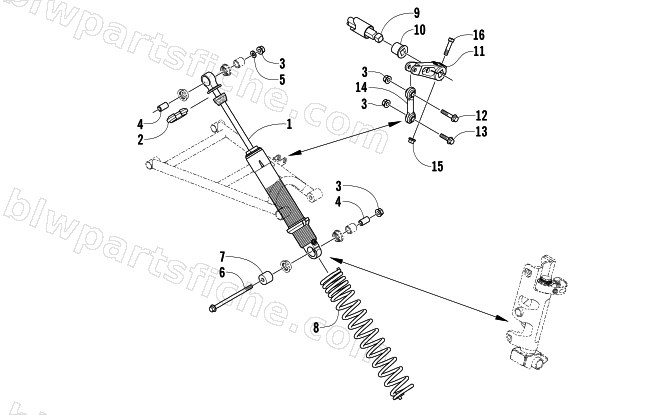

2006 Arctic Cat CROSSFIRE 700 EFI WEST YELLOWSTONE — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2006 CROSSFIRE 700 EFI WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-470 | SHOCK, SKI MONO TUBE 18.7" (475mm) SP | 1 | $381.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 8 | 1703-832 | SPRING,COMPRESSION-PRL CAT GRN | 1 | $65.95 | |
| 8 | 1703-900 | SPRING,COMPRESSION-PTD ORANGE | 1 | $74.95 | |
| 9 | 1703-616 | SWAY BAR,1/2 DIA X 26.22"-PTD BLK | 1 | $137.95 | |
| 10 | 1603-211 | BEARING,SWAY BAR-(THIN WALL TUBE) | 1 | $4.40 | |
| 11 | 2603-307 | ARM, SWAY BAR-W/INSERT | 1 | $110.95 | |
| 12 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 13 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 14 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 16 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 |
