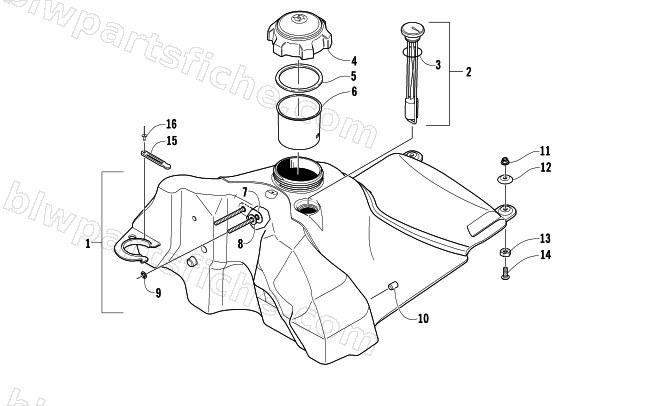

2006 Arctic Cat CROSSFIRE 700 EFI WEST YELLOWSTONE — GAS TANK ASSEMBLY
2006 CROSSFIRE 700 EFI WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-088 | TANK,GAS-S/P ASSY | 1 | $802.95 | |
| 2 | 1670-725 | GAUGE,FUELW/GASKET | 1 | $108.95 | |
| 3 | 0470-400 | SEAL,GAS GAUGE (REF 0470-379) | 1 | $4.68 | |
| 4 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 5 | 1670-511 | SEAL,GAS CAP | 1 | $10.97 | |
| 6 | 1670-626 | NECK,GASTANK EXTENSION-4" | 1 | $4.40 | |
| 7 | 0605-769 | PLATE,MTG-STEERING POST-PLATED | 1 | $52.95 | |
| 8 | 1623-408 | WASHER,RUBBER-1.00X.281X.063 | 1 | $1.50 | |
| 9 | 1623-355 | RETAINER,PUSHNUT-5/16" | 1 | $2.47 | |
| 11 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 12 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 13 | 1623-077 | NUT,AL-1/4-20X3/4 HEX-0.25 THK | 1 | $3.85 | |
| 14 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 15 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 16 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 |
