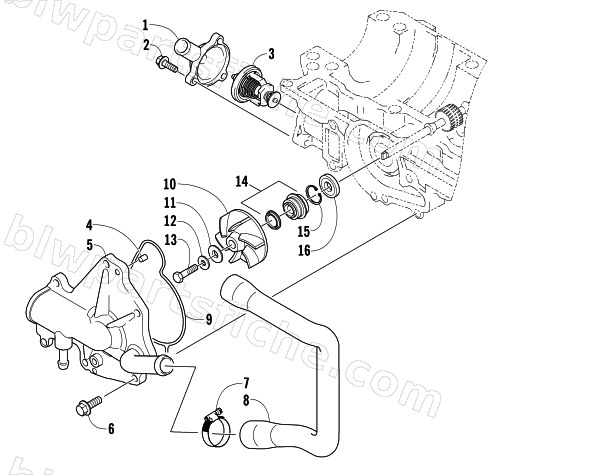

2006 Arctic Cat CROSSFIRE 700 EFI SNO PRO — WATER PUMP AND THERMOSTAT
2006 CROSSFIRE 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-914 | CAP,THERMOSTAT | 1 | $84.95 | |
| 2 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 | |
| 3 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 4 | 3005-899 | PIN | 1 | $3.44 | |
| 5 | 3006-942 | COVER ASSY.-WATER PUMP | 1 | $295.95 | |
| 6 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 8 | 3006-521 | HOSE,WATER INLET | 1 | $56.95 | |
| 9 | 3006-356 | O-RING,WATER PUMP COVER '02 440 SNO PRO | 1 | $49.95 | |
| 10 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 11 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 12 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 13 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 14 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 15 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 16 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 |
