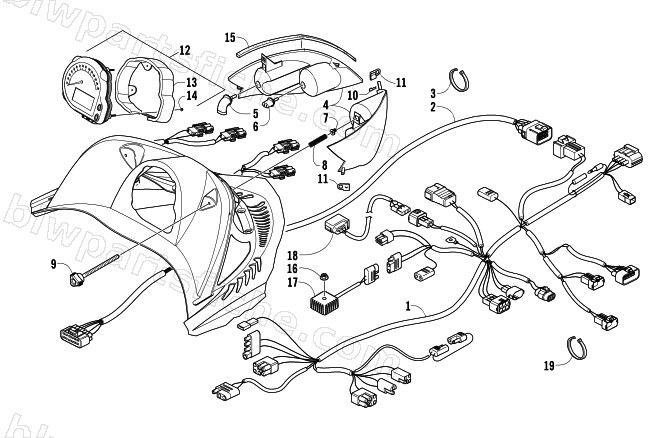

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2006 CROSSFIRE 700 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1686-281 | HARNESS,MAIN ('06 M7 EFI) | 1 | $462.95 | |
| 2 | 1686-255 | HARNESS,HOOD-9T (CROSSFIRE) | 1 | $211.95 | |
| 3 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 4 | 0609-849 | HEADLIGHT,LH-(CF/M)-ASSY | 1 | $216.95 | |
| 5 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 6 | 0609-693 | BULB,HEADLIGHT-(2.93A)-STRAIGHT | 1 | $29.95 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 11 | 1623-272 | CLIP,U-TYPE-RH | 1 | $17.87 | |
| 11 | 1623-273 | CLIP,U-TYPE-LH | 1 | $16.49 | |
| 12 | 0620-300 | SPEEDO/TACH-DIGITAL-BLK(9T) | 1 | $842.95 | |
| 13 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 14 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 15 | 0617-501 | FOAM,HOOD/HEADLIGHT | 1 | $3.16 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 0630-182 | REGULATOR,VOLTAGE-FW 3 WIRE SQ | 1 | $113.95 | |
| 18 | 1686-160 | HARNESS,EXTENSION-TAILLIGHT (141") | 1 | $50.95 | |
| 19 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
