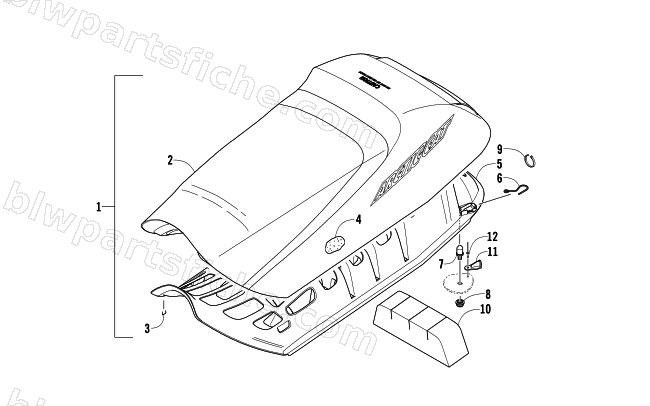

2006 Arctic Cat CROSSFIRE 600 EFI — SEAT ASSEMBLY
2006 CROSSFIRE 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-752 | SEAT,BLK-MFG ASSY | 1 | $581.95 | |
| 2 | 3706-119 | COVER,SEAT-GRN | 1 | $408.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 3706-118 | FOAM,SEAT CUSHION(85-90 ILD).48@6.30 | 1 | $132.95 | |
| 5 | 4606-128 | SEATBASE-INJ MOLD | 1 | $142.95 | |
| 6 | 1623-393 | CLIP,RETAINING SPRING-SEAT | 1 | $6.95 | |
| 7 | 1623-458 | STUD,LATCH-SEAT | 1 | $16.49 | |
| 8 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0617-512 | FOAM,COMPARTMENT-SEAT | 1 | $16.49 | |
| 11 | 4606-322 | COVER,LATCH-SEAT | 1 | $13.73 | |
| 12 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 |
