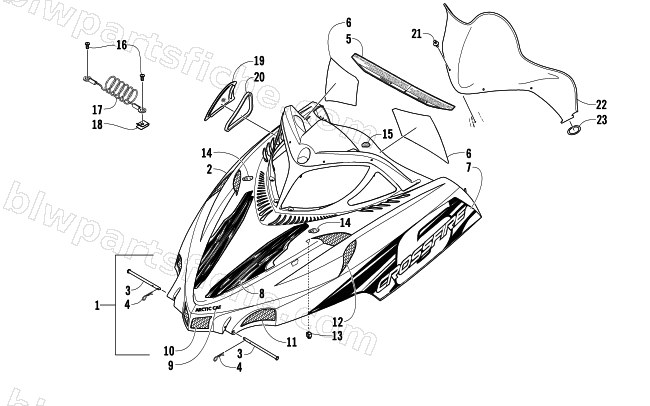

2006 Arctic Cat CROSSFIRE 600 EFI — HOOD AND WINDSHIELD ASSEMBLY
2006 CROSSFIRE 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-870 | HOOD W/DECALS-BLK (CF 600 EFI) | 1 | $1,264.95 | |
| 1 | 1718-934 | HOOD W/DECALS-CF 600 EFI-GRN | 1 | $1,264.95 | |
| 1 | 1718-871 | HOOD W/DECALS-ORN (CF 600 EFI) | 1 | $1,264.95 | |
| 2 | 1718-917 | HOOD W/O DECALS-BLK (M-SERIES) | 1 | $1,169.95 | |
| 2 | 1718-918 | HOOD W/O DECALS-PC GRN (M-SERIES) | 1 | $1,026.95 | |
| 2 | 1718-919 | HOOD W/O DECALS-ORN (M-SERIES) | 1 | $1,169.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 6 | 6611-144 | DECAL,WARNING-HOOD-ENGLISH | 1 | $27.95 | |
| 6 | 6611-145 | DECAL,WARNING-HOOD-FRENCH | 1 | $15.11 | |
| 7 | 7611-080 | DECAL,HOOD-LWR BLK RH-"CROSSFIRE 6" | 1 | $92.95 | |
| 7 | 7611-081 | DECAL,HOOD-LWR BLK LH-"CROSSFIRE 6" | 1 | $87.95 | |
| 7 | 7611-084 | DECAL,HOOD-LWR ORN RH-"CROSSFIRE 6" | 1 | $341.95 | |
| 7 | 7611-085 | DECAL,HOOD-LWR ORN LH-"CROSSFIRE 6" | 1 | $184.95 | |
| 8 | 7611-048 | DECAL,HOOD-UPR BLK RH | 1 | $255.95 | |
| 8 | 7611-049 | DECAL,HOOD-UPR BLK LH | 1 | $243.95 | |
| 8 | 7611-214 | DECAL,HOOD-UPR RH-GRN | 1 | $141.95 | |
| 8 | 7611-215 | DECAL,HOOD-UPR LH-GRN | 1 | $136.95 | |
| 8 | 7611-056 | DECAL,HOOD-UPR ORN RH | 1 | $59.95 | |
| 8 | 7611-057 | DECAL,HOOD-UPR ORN LH | 1 | $107.95 | |
| 9 | 7611-058 | DECAL,NOSE-"ARCTIC CAT" GRN | 1 | $185.95 | |
| 9 | 7611-213 | DECAL,NOSE-"ARCTIC CAT"-GRN | 1 | $37.95 | |
| 9 | 7611-061 | DECAL,NOSE-"ARCTIC CAT" ORN | 1 | $17.87 | |
| 10 | 2706-793 | SCREEN,VENT-HOOD-FRT CENTER-PTD BLK | 1 | $33.95 | |
| 11 | 3706-260 | SCREEN,VENT-HOOD-FRT R/H-PTD BLK | 1 | $58.95 | |
| 11 | 3706-261 | SCREEN,VENT-HOOD-FRT L/H-PTD BLK | 1 | $58.95 | |
| 12 | 2706-796 | SCREEN,VENT-HOOD-REAR R/H-PTD BLK | 1 | $43.95 | |
| 12 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 13 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 14 | 0617-490 | FOAM,ACOUSTICAL-HOOD-RH | 1 | $42.95 | |
| 14 | 0617-545 | FOAM,ACOUSTICAL-HOOD-LH | 1 | $112.95 | |
| 15 | 0617-489 | FOAM,HOOD/CONSOLE | 1 | $19.25 | |
| 16 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 17 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 19 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 20 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 20 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 4606-117 | WINDSHIELD,MED-TINT-FORMED (M-SERIES) | 1 | $217.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
