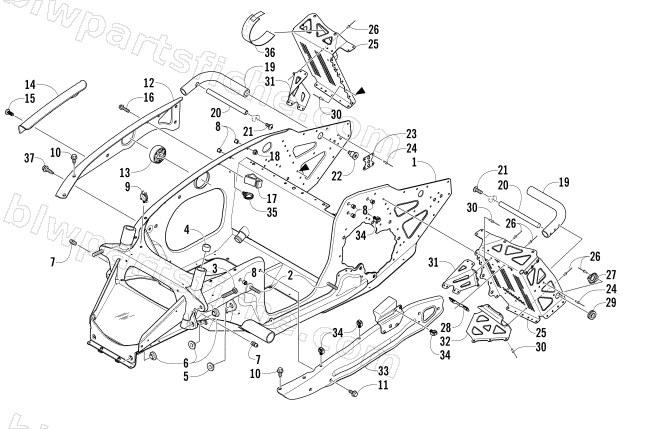

2006 Arctic Cat CROSSFIRE 600 EFI — FRONT FRAME AND FOOTREST ASSEMBLY
2006 CROSSFIRE 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-107 | CHASSIS/TUNNEL-S/P ASSY | 1 | $2,686.95 | |
| 0 | 3706-731 | KIT,TOOL BAG-ASSY | 1 | $59.95 | |
| 1 | 1707-050 | CHASSIS,S/P ASSY-PTD BLK | 1 | $1,825.95 | |
| 2 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 3 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 6 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 9 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 10 | 1623-480 | SCREW,CAP-HFH 1/4 20X.56 ZY (2353) DPT | 1 | $1.95 | |
| 11 | 1623-481 | SCREW,CAP-HFH 5/16 18X.875 ZY (204) DPT | 1 | $2.06 | |
| 12 | 3706-116 | BRACE,SIDE PLATE-RH-PTD BLK | 1 | $296.95 | |
| 13 | 0608-404 | MOUNT,ENGINE-60 DURO(W/O COUNTERBORE) | 1 | $65.95 | |
| 14 | 3606-761 | PROTECTOR,MAIN HARNESS-FORMED | 1 | $20.63 | |
| 15 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 16 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 17 | 0608-449 | GUIDE,ROPE-WIDE | 1 | $7.95 | |
| 18 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 19 | 3706-331 | TUBE,SUPPORT-FOOTREST-PTD BLK | 1 | $32.95 | |
| 20 | 3706-332 | GUARD,SUPPORT-PTD BLK | 1 | $14.95 | |
| 21 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 22 | 1623-484 | SCREW,TUBE-13/16-16 X .75 (2353) DPT | 1 | $12.35 | |
| 23 | 2706-580 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $15.11 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 3706-334 | FOOTREST ASSY- RH-PTD BLK | 1 | $97.95 | |
| 25 | 3706-333 | FOOTREST ASSY- LH-PTD BLK | 1 | $82.95 | |
| 26 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 27 | 3706-335 | PLATE,RETAINING-PTD BLK | 1 | $10.95 | |
| 28 | 0607-835 | PLATE,MTG-CLUTCH GUARD/FOOTREST | 1 | $3.57 | |
| 29 | 1623-529 | GROMMET,RUBBER-.50 IDX1.00 ODX.08 GRV | 1 | $3.85 | |
| 30 | 1623-264 | RIVET,CHERRY-CCPQ06-04 | 1 | $3.16 | |
| 31 | 3706-336 | GUSSET,FOOTREST- UPPER RH-PTD BLK | 1 | $50.95 | |
| 31 | 3706-337 | GUSSET,FOOTREST-UPPER LH-PTD BLK | 1 | $19.95 | |
| 32 | 3706-338 | GUSSET,FOOTREST-LH-PTD BLK | 1 | $25.95 | |
| 33 | 3706-129 | BRACE,SIDE PLATE-LH-ASSY | 1 | $113.95 | |
| 34 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 35 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 | |
| 36 | 3706-033 | RETAINER,TOOL KIT-VELCRO | 1 | $16.49 | |
| 37 | 1623-561 | SCREW,CAP-HFH 5/16-18X0.75 W/204 | 1 | $1.78 |
