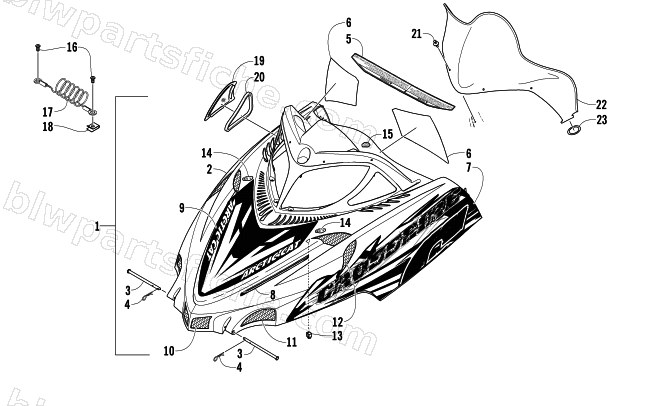

2006 Arctic Cat CROSSFIRE 600 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2006 CROSSFIRE 600 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-965 | HOOD W/DECALS-BLK (CF 6 SNO PRO) | 1 | $1,328.95 | |
| 1 | 1718-966 | HOOD W/DECALS-GRN (CF 6 SNO PRO) | 1 | $1,328.95 | |
| 1 | 1718-967 | HOOD W/DECALS-ORN (CF 6 SNO PRO) | 1 | $1,328.95 | |
| 2 | 1718-917 | HOOD W/O DECALS-BLK (M-SERIES) | 1 | $1,169.95 | |
| 2 | 1718-918 | HOOD W/O DECALS-PC GRN (M-SERIES) | 1 | $1,026.95 | |
| 2 | 1718-919 | HOOD W/O DECALS-ORN (M-SERIES) | 1 | $1,169.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 6 | 6611-144 | DECAL,WARNING-HOOD-ENGLISH | 1 | $27.95 | |
| 6 | 6611-145 | DECAL,WARNING-HOOD-FRENCH | 1 | $15.11 | |
| 7 | 7611-470 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (6 BLK) | 1 | $104.95 | |
| 7 | 7611-471 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (6 BLK) | 1 | $108.95 | |
| 7 | 7611-476 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (6 GRN) | 1 | $114.95 | |
| 7 | 7611-477 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (6 GRN) | 1 | $114.95 | |
| 7 | 7611-480 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (6 ORN) | 1 | $114.95 | |
| 7 | 7611-481 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (6 ORN) | 1 | $301.95 | |
| 8 | 7611-468 | DECAL,HOOD-FORWARD-RH (BLK) | 1 | $48.95 | |
| 8 | 7611-469 | DECAL,HOOD-FORWARD-LH (BLK) | 1 | $48.95 | |
| 8 | 7611-474 | DECAL,HOOD-FORWARD-RH (GRN) | 1 | $197.95 | |
| 8 | 7611-475 | DECAL,HOOD-FORWARD-LH (GRN) | 1 | $197.95 | |
| 8 | 7611-478 | DECAL,HOOD-FORWARD-RH (ORN) | 1 | $47.95 | |
| 8 | 7611-479 | DECAL,HOOD-FORWARD-LH (ORN) | 1 | $49.95 | |
| 9 | 7611-472 | DECAL,HOOD-CREST (BLK) | 1 | $75.95 | |
| 9 | 7611-473 | DECAL,HOOD-CREST (GRN) | 1 | $166.95 | |
| 9 | 7611-488 | DECAL,HOOD-CREST (ORN) | 1 | $213.95 | |
| 10 | 2706-793 | SCREEN,VENT-HOOD-FRT CENTER-PTD BLK | 1 | $33.95 | |
| 11 | 3706-260 | SCREEN,VENT-HOOD-FRT R/H-PTD BLK | 1 | $58.95 | |
| 11 | 3706-261 | SCREEN,VENT-HOOD-FRT L/H-PTD BLK | 1 | $58.95 | |
| 12 | 2706-796 | SCREEN,VENT-HOOD-REAR R/H-PTD BLK | 1 | $43.95 | |
| 12 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 13 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 14 | 0617-490 | FOAM,ACOUSTICAL-HOOD-RH | 1 | $42.95 | |
| 14 | 0617-545 | FOAM,ACOUSTICAL-HOOD-LH | 1 | $112.95 | |
| 15 | 0617-489 | FOAM,HOOD/CONSOLE | 1 | $19.25 | |
| 16 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 17 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 19 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 20 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 20 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 3606-868 | WINDSHIELD,FORMED-BLK | 1 | $200.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
