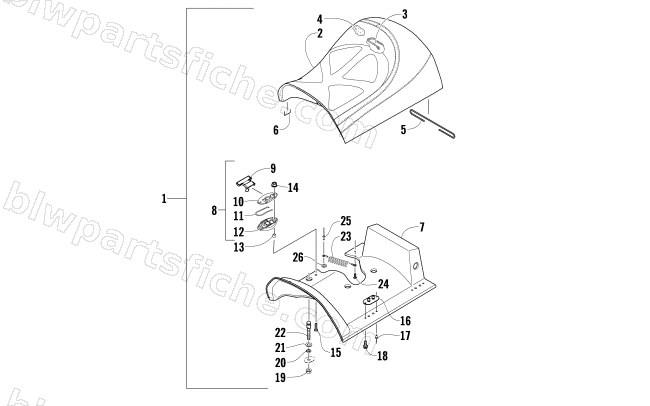

FRONT SEAT ASSEMBLY
2006 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-534 | SEAT, FRONT-MFG ASSY | 1 | $663.95 | |
| 2 | 3706-197 | COVER, SEAT-FRONT-BCWT | 1 | $321.95 | |
| 4 | 3706-313 | FOAM, SEAT-FRONT-06 BCWT (70-75 ILD) | 1 | $193.95 | |
| 5 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 3606-948 | BASE SEAT FRONT-06 BCWT | 1 | $134.95 | |
| 8 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 9 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 10 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 11 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 12 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 13 | 1623-111 | SPACER, .325 X .540 X .400 | 1 | $3.02 | |
| 14 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 15 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 16 | 0716-570 | PLATE,BACKING SEAT HINGE ASSY | 1 | $13.73 | |
| 17 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 18 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 19 | 1623-083 | NUT,HEX JAM - M10 X 1.25 | 1 | $1.78 | |
| 20 | 0423-322 | NUT, WHEEL MOUNTING-Z&C | 1 | $2.95 | |
| 21 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 22 | 1623-345 | STUD, LATCH- SEAT | 1 | $16.49 | |
| 23 | 4606-162 | CABLE, SEAT-22.5" | 1 | $24.77 | |
| 24 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 25 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 26 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
