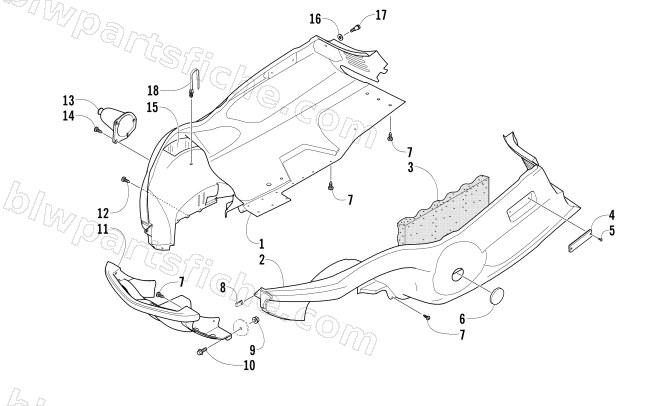

2006 Arctic Cat BEARCAT WIDE TRACK — BELLY PAN AND FRONT BUMPER ASSEMBLY
2006 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-288 | BELLYPAN, OUTER-RH-OS-PLAT-ROUTED | 1 | $596.95 | |
| 1 | 4606-020 | BELLYPAN, OUTER-RH-PLATINUM-BCWT | 1 | $577.95 | |
| 2 | 4606-021 | BELLYPAN, OUTER-LH-PLATINUM-BCWT | 1 | $490.95 | |
| 3 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 4 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 5 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 6 | 1623-412 | PLUG,BELLYPAN-2.00-PLATINUM | 1 | $20.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 9 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 10 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 11 | 3706-015 | BUMPER, FRONT-ROUTED-PLATINUM | 1 | $124.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 13 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 14 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 15 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 18 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
