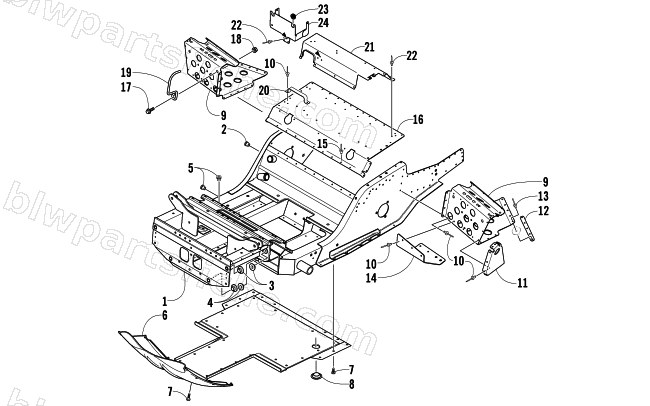

2006 Arctic Cat BEARCAT WIDE TRACK TURBO — FRONT FRAME AND FOOTREST ASSEMBLY
2006 BEARCAT WIDE TRACK TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-086 | CHASSIS,FRT END-S/P ASSY UNPTD | 1 | $1,312.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 6 | 3706-114 | R/B 2706-516 | 1 | $158.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 2606-367 | PLUG, OIL DRAIN ACCESS | 1 | $3.16 | |
| 9 | 2606-274 | FOOTREST, RH | 1 | $100.95 | |
| 9 | 2606-275 | FOOTREST, LH | 1 | $89.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0607-676 | GUSSET, FOOTREST-RH | 1 | $19.95 | |
| 11 | 0607-677 | GUSSET, FOOTREST-LH | 1 | $20.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 14 | 0607-679 | BRKT, RUNNING BOARD-LH | 1 | $0.00 | |
| 15 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 16 | 4606-060 | COVER, FRONT-BCWT | 1 | $67.95 | |
| 17 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 0745-200 | BRKT,HARNESS-PTD BLK | 1 | $14.95 | |
| 20 | 0707-710 | BRKT,HOSE HOLDDOWN-PTD BLK | 1 | $17.87 | |
| 21 | 0607-864 | SUPPORT, GASTANK-BCWT | 1 | $46.95 | |
| 22 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 23 | 0645-359 | MOUNT, ECU | 1 | $24.95 | |
| 24 | 0745-271 | FUSEBOX, ECU HOLDER-PAINTED | 1 | $37.95 |
