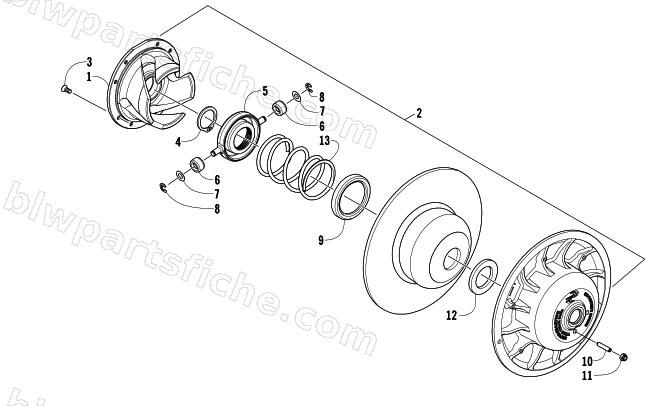

2006 Arctic Cat AC 440 SNO PRO — DRIVEN CLUTCH
2006 AC 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-231 | CLUTCH,DRIVEN-RED/BLK-70-44-32/68-48-46 | 1 | $750.95 | |
| 1 | 0648-773 | CAM,ASSY-10.75 L/W- 70-44-32/68-48-46 | 1 | $285.95 | |
| 2 | 0726-232 | CLUTCH,DRIVEN-10.75 BASIC L/W | 1 | $472.95 | |
| 3 | 0648-748 | SCREW,CAP-TSFH 1/4-28 X.625 (TI) | 1 | $2.95 | |
| 4 | 0648-771 | RING,RETAINING-EXTERNAL 1.375" | 1 | $15.11 | |
| 6 | 0648-699 | ROLLER,CLUTCH(TI) | 1 | $42.95 | |
| 7 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 8 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 9 | 0648-703 | WASHER,THRUST(TI) | 1 | $22.01 | |
| 10 | 0648-707 | SCREW,SET HEX SKT-1/4-20X1.25(TI) | 1 | $13.73 | |
| 11 | 0648-777 | NUT,FLEXLOCK-1/4-20 UNC (TEAM IND.) | 1 | $0.40 | |
| 12 | 0648-772 | SPACER,1.510 ID X 2.950 OD X .062 | 1 | $15.11 | |
| 13 | 0648-702 | SPRING,CLUTCH-RED/BLK STRIPE 140/240 TI | 1 | $70.95 |
