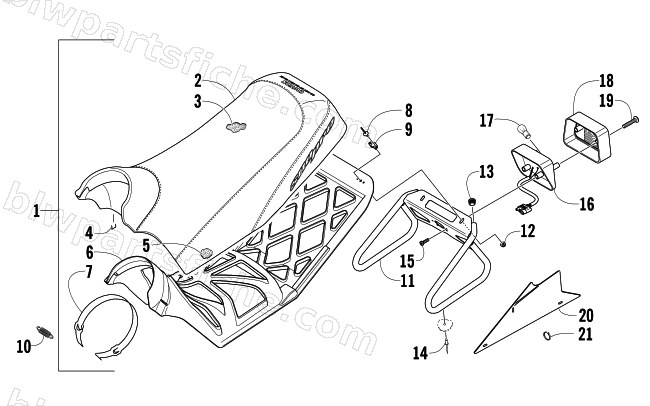

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — SEAT ASSEMBLY
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-433 | SEAT,MFG ASSY | 1 | $888.95 | |
| 2 | 2706-844 | COVER,SEAT-W/DECAL | 1 | $535.95 | |
| 3 | 0717-194 | FOAM,SEAT (80-86 ILD).50@3.3 | 1 | $125.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 0617-461 | FOAM,SEAT-LWR | 1 | $117.95 | |
| 6 | 3606-452 | BASE,SEAT-PLASTIC | 1 | $178.95 | |
| 7 | 2706-768 | STRAP,SEAT-PTD BLK | 1 | $51.95 | |
| 8 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 9 | 0716-858 | HOLDDOWN,SEAT-REAR-PTD BLK ('98 440 PRO) | 1 | $11.95 | |
| 10 | 3606-549 | SPRING,SEAT STRAP | 1 | $16.49 | |
| 12 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 13 | 0606-654 | PLUG,HOLE-5/8 | 1 | $0.65 | |
| 14 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 15 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 16 | 0609-664 | SOCKET/BASE,TAILLIGHT-ASSY | 1 | $85.95 | |
| 17 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 18 | 0609-665 | LENS,TAILLIGHT-NO.218 RED | 1 | $35.95 | |
| 19 | 0609-666 | SCREW,SELF TAP-PHPNH #8X1.00 | 1 | $0.95 | |
| 20 | 3706-128 | KIT,NUMBER PLATE | 1 | $135.95 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
