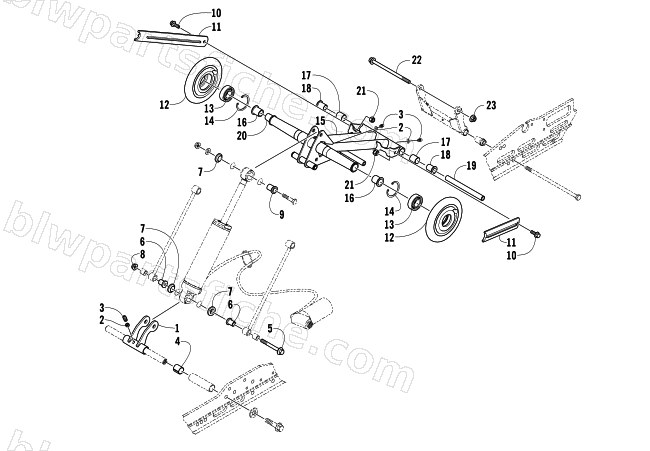

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — REAR ARM KIT
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-630 | PIVOT,REAR SHOCK-FABR | 1 | $31.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 8026-414 | SCREW,CAP-HFH 1/2-13 X 4 GR8 Z&Y | 1 | $5.65 | |
| 6 | 3604-209 | AXLE, LINK-FLANGED | 1 | $15.11 | |
| 7 | 3604-210 | SPACER, BEARING-.500 ID | 1 | $6.75 | |
| 8 | 8047-610 | NUT,HEX FLG-NY LOCK 1/2-13 GR G Z&Y | 1 | $2.75 | |
| 9 | 3604-127 | SPACER,SPHERICAL BEARING | 1 | $51.95 | |
| 10 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 11 | 3604-231 | BRACE,SUPPORT-IDLER ARM | 1 | $60.95 | |
| 12 | 3604-230 | WHEEL,IDL-6.38(NO INSR)W/HOLE | 1 | $110.95 | |
| 13 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 14 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 15 | 1704-579 | ARM,IDLER-FABR | 1 | $425.95 | |
| 16 | 3604-223 | BEARING,FLANGED-PLASTIC | 1 | $15.11 | |
| 17 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 18 | 3604-222 | BUSHING,AXLE | 1 | $34.95 | |
| 19 | 3604-226 | AXLE,ALUM-.622 X 6.817 | 1 | $73.95 | |
| 20 | 3604-227 | AXLE,ALUM-INNER CARRIAGE-.749X13.810 | 1 | $70.95 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 22 | 1623-674 | SCREW,CAP-HH 3/8-16X7.8 GR 5 Z&Y | 1 | $20.63 | |
| 23 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 |
