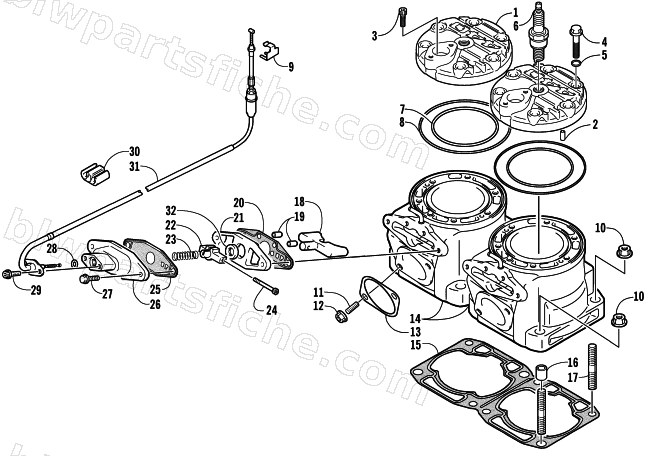

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — CYLINDER AND HEAD ASSEMBLY
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2900-001 | COVER,CYLINDER HEAD-SPEEDWERX | 1 | $351.95 | |
| 2 | 2900-002 | INSERT,BILLET CYLINDER HEAD-SPEEDWERX | 1 | $157.95 | |
| 3 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 4 | 3007-460 | BOLT | 1 | $3.85 | |
| 5 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3003-335 | O RING,HEAD-INNER | 1 | $33.95 | |
| 7 | 2900-025 | O-RING,HEAD-SPARK PLUG-SPEEDWERX | 1 | $3.95 | |
| 8 | 2900-004 | O-RING, CYLINDER HEAD-OUTER SPEEDWERX | 1 | $4.95 | |
| 9 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 11 | 2900-021 | BOLT,EXHAUST FLANGE-SPEEDWERX | 1 | $3.95 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 2900-030 | CYLINDER,600 MODIFIED-SPEEDWERX | 1 | $1,585.95 | |
| 17 | 2900-020 | BOLT,SOCKET HEAD-CYLINDER-SPEEDWERX | 1 | $6.95 | |
| 18 | 2900-011 | EXHAUST VALVE,BILLET-SPEEDWERX | 1 | $126.95 | |
| 21 | 2900-012 | EXHAUST VALVE,ADAPTOR-SPEEDWERX | 1 | $216.95 | |
| 22 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 23 | 3006-484 | SPRING | 1 | $6.34 | |
| 24 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 26 | 3006-425 | COVER,EXHAUST VALVE | 1 | $84.95 | |
| 27 | 2900-027 | BOLT,EX VALVE COVER-SPEEDWERX | 1 | $2.95 | |
| 27 | 2900-024 | BOLT,EX VALVE ADAPTOR PLATE-SPEEDWERX | 1 | $2.95 | |
| 28 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 29 | 3007-433 | BOLT | 1 | $3.16 | |
| 30 | 3005-808 | CLAMP | 1 | $6.95 | |
| 31 | 3006-736 | CABLE COMP,EXHAUST VALVE | 1 | $117.95 | |
| 32 | 3006-322 | SEAL,OIL,12X21X7 '02 440 SNO PRO | 1 | $49.95 |
