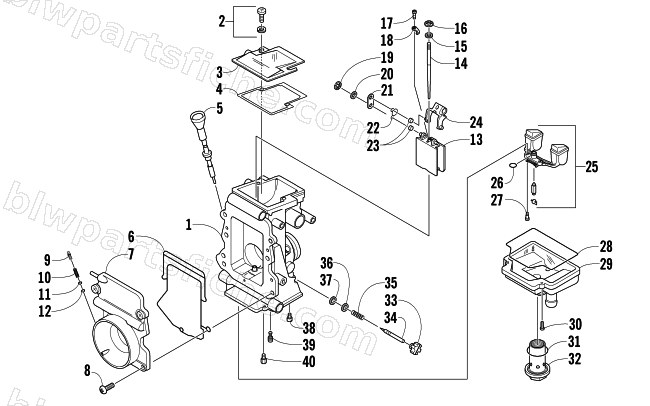

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — CARBURETOR, INTERNAL PARTS
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1670-827 | CARB,MOD-SPEEDWERX | 1 | $648.95 | |
| 2 | 6505-591 | SCREW | 1 | $1.64 | |
| 3 | 6506-142 | CAP, TOP | 1 | $53.95 | |
| 4 | 6506-034 | GASKET | 1 | $32.95 | |
| 5 | 6506-387 | PLUNGER,STARTER-TM40/134 | 1 | $22.01 | |
| 6 | 6506-209 | O-RING | 1 | $29.95 | |
| 7 | 6506-345 | FUNNEL ASSY | 1 | $240.95 | |
| 8 | 6505-980 | SCREW | 1 | $1.50 | |
| 9 | 6506-220 | ADJUSTER | 1 | $17.87 | |
| 10 | 6506-217 | SPRING (C0) | 1 | $3.44 | |
| 11 | 6506-218 | WASHER | 1 | $1.37 | |
| 12 | 4505-011 | O-RING | 1 | $5.09 | |
| 13 | 6506-120 | PISTON VALVE-3.0 | 1 | $144.95 | |
| 14 | 6506-384 | JET NEEDLE | 1 | $34.95 | |
| 15 | 6505-552 | WASHER,E-RING PACKING | 1 | $1.23 | |
| 16 | 6505-628 | E-RING | 1 | $3.44 | |
| 17 | 6506-054 | RETAINING PLATE SCREW | 1 | $3.44 | |
| 18 | 6506-055 | PLATE, JET NEEDLE RETAINING | 1 | $7.95 | |
| 19 | 6506-051 | E-RING | 1 | $3.99 | |
| 20 | 6506-052 | WASHER | 1 | $2.47 | |
| 21 | 6506-039 | PLATE | 1 | $10.97 | |
| 22 | 6506-040 | CLIP | 1 | $17.87 | |
| 23 | 6506-053 | RING | 1 | $3.99 | |
| 24 | 6506-047 | LEVER ASSEMBLY | 1 | $92.95 | |
| 24 | 6506-043 | LEVER ASSEMBLY | 1 | $108.95 | |
| 25 | 6506-144 | FLOAT ASSY, 1.8 | 1 | $161.95 | |
| 26 | 6505-875 | O-RING | 1 | $1.64 | |
| 27 | 6506-037 | SCREW, FLOAT ARM | 1 | $3.85 | |
| 28 | 6506-038 | O-RING | 1 | $24.77 | |
| 29 | 6506-036 | FLOAT CHAMBER | 1 | $97.95 | |
| 30 | 6506-072 | SCREW | 1 | $1.37 | |
| 31 | 6505-185 | O-RING | 1 | $3.99 | |
| 32 | 6506-032 | DRAIN PLUG | 1 | $43.95 | |
| 33 | 6506-076 | CAP | 1 | $6.34 | |
| 34 | 6506-145 | ADJUSTER | 1 | $20.63 | |
| 35 | 6506-079 | SPRING | 1 | $3.99 | |
| 36 | 6506-078 | WASHER | 1 | $1.37 | |
| 37 | 6506-080 | WASHER | 1 | $2.06 | |
| 38 | 6506-101 | STARTER JET - 135 | 1 | $10.97 | |
| 39 | 6505-642 | PILOT JET 60 | 1 | $6.34 | |
| 40 | 6505-212 | JET MAIN 410 | 1 | $6.75 | |
| 40 | 6505-400 | SCREW | 1 | $1.50 |
