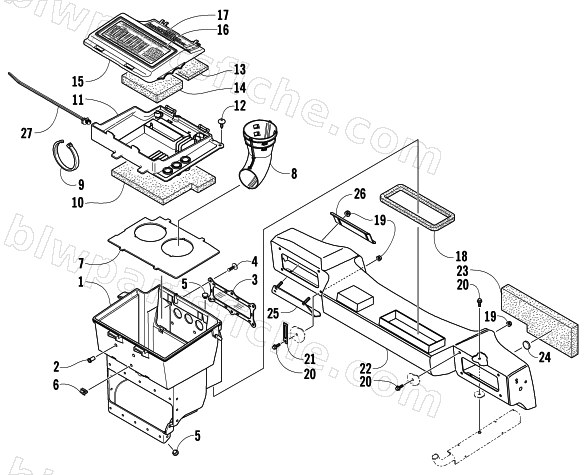

AIR SILENCER ASSEMBLY
2005 ZR 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-666 | SILENCER, AIR-S/P ASSY-MC 900 | 1 | $178.95 | |
| 2 | 1623-127 | INSERT, AL SERIES ALS4-1024-225 | 1 | $5.09 | |
| 3 | 1670-517 | SCREEN, VENT-AIR SILENCER | 1 | $85.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 6 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 7 | 1670-461 | BAFFLE,AIR SILENCER-L/W | 1 | $17.95 | |
| 8 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0617-430 | FOAM,AIR SILENCER-TOP | 1 | $15.11 | |
| 11 | 1670-539 | COVER,AIR SILENCER-TWIN | 1 | $38.95 | |
| 12 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 13 | 0617-440 | FOAM,TOOL TRAY-5.5 X 3.0 X .5 | 1 | $3.95 | |
| 14 | 0617-439 | FOAM,TOOL TRAY-5.5 X 4.0 X 1.75 | 1 | $7.95 | |
| 15 | 1670-425 | COVER,TOOL TRAY-TWIN | 1 | $36.95 | |
| 16 | 6611-522 | DECAL,JET CHART-2005 ZR 900 CARB | 1 | $29.95 | |
| 17 | 5611-911 | DECAL,OPERATION-HEATED CARBURETOR | 1 | $19.95 | |
| 18 | 0617-436 | SEAL, AIR BOX/PLENUM-TWIN | 1 | $3.95 | |
| 19 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 20 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 22 | 1670-428 | PLENUM,AIR SILENCER-TWIN-CARB-ROUTED | 1 | $94.95 | |
| 23 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 24 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 25 | 1706-899 | PLATE, ADJUSTABLE-PTD BLK | 1 | $26.95 | |
| 26 | 2606-095 | PLATE,BACKING-ADJUSTABLE FOOTHOLD | 1 | $11.95 | |
| 27 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
