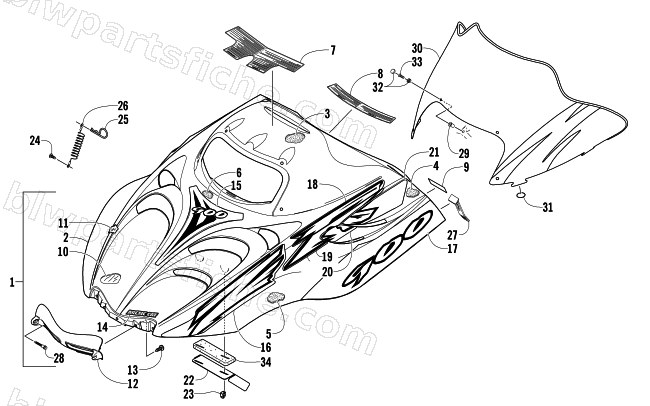

2005 Arctic Cat ZR 900 SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2005 ZR 900 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-682 | HOOD W/DECALS-BLK-CARB | 1 | $1,422.95 | |
| 1 | 1718-680 | HOOD W/DECALS-GRN-CARB | 1 | $1,358.95 | |
| 2 | 1718-722 | HOOD W/O DECALS-BLK | 1 | $1,090.95 | |
| 2 | 1718-684 | HOOD,GRN-W/O DECAL | 1 | $1,090.95 | |
| 3 | 0617-478 | FOAM,HOOD-MIDDLE UPR RH | 1 | $19.25 | |
| 3 | 0617-479 | FOAM,HOOD-MIDDLE UPR LH | 1 | $19.25 | |
| 4 | 0617-480 | FOAM,HOOD-REAR RH | 1 | $11.95 | |
| 4 | 0617-481 | FOAM,HOOD-REAR LH | 1 | $15.11 | |
| 5 | 0617-476 | FOAM,HOOD-UPR RH | 1 | $19.25 | |
| 5 | 0617-477 | FOAM,HOOD-UPR LH | 1 | $19.25 | |
| 6 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 6611-378 | DECAL,HOOD-"ARCTIC CAT" YLW | 1 | $20.95 | |
| 14 | 6611-353 | DECAL,HOOD-"ARCTIC CAT" GRN | 1 | $18.95 | |
| 15 | 6611-351 | DECAL,HOOD-BLK CREST-900 CARB | 1 | $44.95 | |
| 15 | 6611-324 | DECAL,HOOD-GRN CREST-900 CARB | 1 | $171.95 | |
| 16 | 6611-360 | DECAL,HOOD-UPR FWD ZR-RH | 1 | $141.95 | |
| 16 | 6611-361 | DECAL,HOOD-UPR FWD ZR-LH | 1 | $64.95 | |
| 16 | 6611-332 | DECAL,HOOD-UPR FWD ZR-RH | 1 | $65.95 | |
| 16 | 6611-333 | DECAL,HOOD-UPR FWD ZR-LH | 1 | $65.95 | |
| 17 | 6611-362 | DECAL,HOOD-LWR RH | 1 | $64.95 | |
| 17 | 6611-363 | DECAL,HOOD-LWR LH | 1 | $171.95 | |
| 17 | 6611-334 | DECAL,HOOD-LWR RH | 1 | $171.95 | |
| 17 | 6611-335 | DECAL,HOOD-LWR LH | 1 | $88.95 | |
| 18 | 6611-452 | DECAL, HOOD-UPR ZR RH | 1 | $33.95 | |
| 18 | 6611-453 | DECAL, HOOD-UPR ZR LH | 1 | $34.95 | |
| 18 | 6611-450 | DECAL, HOOD-UPR ZR-RH | 1 | $32.95 | |
| 18 | 6611-451 | DECAL, HOOD-UPR ZR-LH | 1 | $32.95 | |
| 19 | 6611-358 | DECAL,HOOD VENT-FWD RH | 1 | $40.95 | |
| 19 | 6611-359 | DECAL,HOOD VENT-FWD LH | 1 | $40.95 | |
| 19 | 6611-330 | DECAL,HOOD VENT-FWD RH | 1 | $36.95 | |
| 19 | 6611-331 | DECAL,HOOD VENT-FWD LH | 1 | $36.95 | |
| 20 | 6611-356 | DECAL,HOOD VENT-CTR RH | 1 | $20.95 | |
| 20 | 6611-357 | DECAL,HOOD VENT-CTR LH | 1 | $20.95 | |
| 20 | 6611-328 | DECAL,HOOD VENT-CTR RH | 1 | $47.95 | |
| 20 | 6611-329 | DECAL,HOOD VENT-CTR LH | 1 | $20.95 | |
| 21 | 6611-354 | DECAL,HOOD VENT-RR RH | 1 | $29.95 | |
| 21 | 6611-355 | DECAL,HOOD VENT-RR LH | 1 | $29.95 | |
| 21 | 6611-326 | DECAL,HOOD VENT-RR RH | 1 | $29.95 | |
| 21 | 6611-327 | DECAL,HOOD VENT-RR LH | 1 | $31.95 | |
| 22 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 23 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 26 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 27 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 28 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 29 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 30 | 3606-604 | WINDSHIELD,LOW BLK-W/RED DECAL | 1 | $214.95 | |
| 30 | 3606-605 | WINDSHIELD,LOW BLK-W/GRN DECAL | 1 | $220.95 | |
| 31 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 32 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 33 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 34 | 0617-494 | FOAM,AIR DEFLECTOR | 1 | $4.95 |
