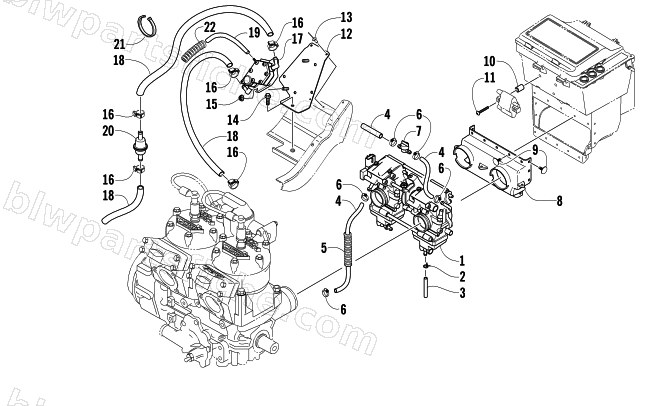

2005 Arctic Cat ZR 900 SNO PRO — CARBURETOR AND FUEL PUMP ASSEMBLY
2005 ZR 900 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-570 | CARB,TM40-B283 | 1 | $1,147.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 | |
| 5 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 6 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 7 | 1670-111 | VALVE, PLASTIC,SHUT-OFF | 1 | $29.95 | |
| 8 | 1670-306 | BOOT, CARB | 1 | $112.95 | |
| 9 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 10 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 11 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 12 | 0770-497 | PLATE,MTG-FUEL PUMP-ASSY | 1 | $20.95 | |
| 13 | 0623-149 | RIVET,CHERRY SSPQ56 | 1 | $1.95 | |
| 14 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 15 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 16 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 18 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 18 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 19 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 20 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 21 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 22 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 |
