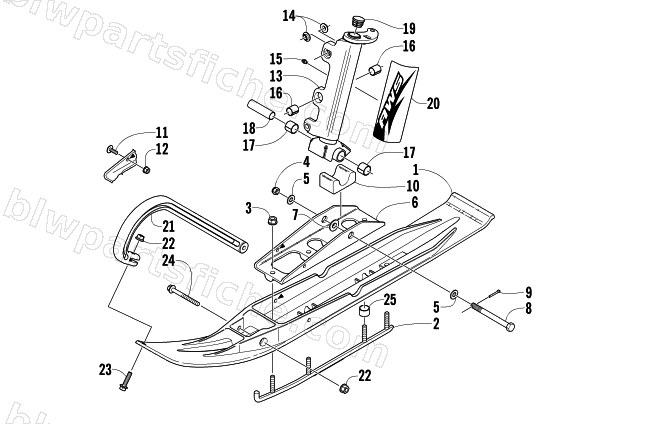

2005 Arctic Cat ZR 900 EFI SNO PRO — SKI AND SPINDLE ASSEMBLY
2005 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-958 | SKI, PLASTIC,MACH BLK(W/SKAG GROOVE) | 1 | $234.95 | |
| 2 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 5 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 6 | 1703-501 | SADDLE,SKI-W/INSERTS-PTD PLAT | 1 | $101.95 | |
| 7 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 8 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 11 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 12 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 13 | 1703-756 | SPINDLE,RH-FABR PLAT | 1 | $256.95 | |
| 13 | 1703-757 | SPINDLE,LH-FABR PLAT | 1 | $256.95 | |
| 14 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 15 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 16 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 17 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 18 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 20 | 6611-372 | DECAL,SPINDLE-BLK RH | 1 | $20.63 | |
| 20 | 6611-373 | DECAL,SPINDLE-BLK LH | 1 | $20.63 | |
| 20 | 6611-344 | DECAL,SPINDLE-GRN RH | 1 | $19.95 | |
| 20 | 6611-345 | DECAL,SPINDLE-GRN LH | 1 | $167.95 | |
| 21 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 21 | 2603-377 | HANDLE,PLASTIC SKI-PEARL CAT GRN | 1 | $32.95 | |
| 22 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 23 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 24 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 25 | 1603-968 | SPACER,SADDLE | 1 | $4.95 |
