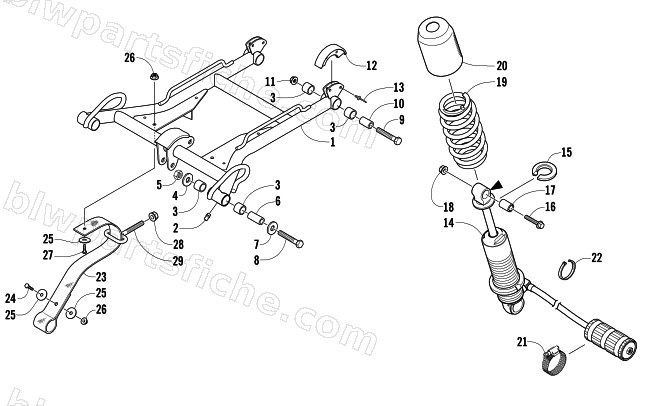

2005 Arctic Cat ZR 900 EFI SNO PRO — REAR SUSPENSION FRONT ARM ASSEMBLY
2005 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-316 | ARM,FRT-FABR | 1 | $270.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 7 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 8 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 9 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 10 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 11 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 12 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 13 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 14 | 1704-265 | SHOCK,FRT ARM-IMP. EXTR-W/REMOTE | 1 | $922.95 | |
| 15 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 16 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 17 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 18 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 19 | 0704-855 | SPRING,FRT ARM-7.00" X 180#-PTD BLK | 1 | $70.95 | |
| 20 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 21 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 1604-866 | STRAP,LIMITER-WIDE | 1 | $72.95 | |
| 24 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 25 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 28 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 29 | 1604-583 | ADJUSTER,FRT ARM-Z&Y(99 PRO) | 1 | $28.95 |
