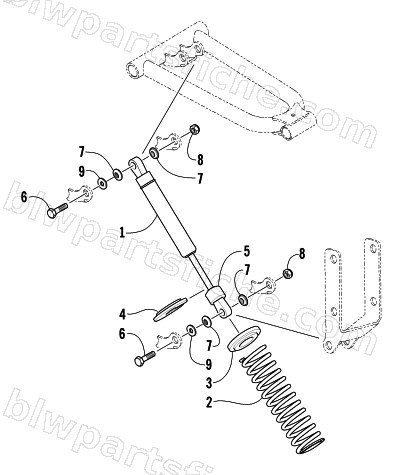

2005 Arctic Cat ZR 120 — FRONT SUSPENSION SHOCK ABSORBER
2005 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4639-137 | KIT, Z120 SKI SHOCK (PR) | 1 | $295.95 | |
| 2 | 1703-647 | SPRING, COMPRESSION-YELLOW | 1 | $46.95 | |
| 3 | 1603-862 | RETAINER-LOWER SPRING | 1 | $10.97 | |
| 4 | 1603-861 | RETAINER-UPPER SPRING | 1 | $9.59 | |
| 5 | 1603-872 | BUMPER, SHOCK - RUBBER | 1 | $2.95 | |
| 6 | 0623-897 | BOLT, SHOCK-HH 3/8-16X1.75 Z&Y (Z120) | 1 | $5.95 | |
| 7 | 1603-863 | BUSHING-SHOCK MTG | 1 | $5.95 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 |
