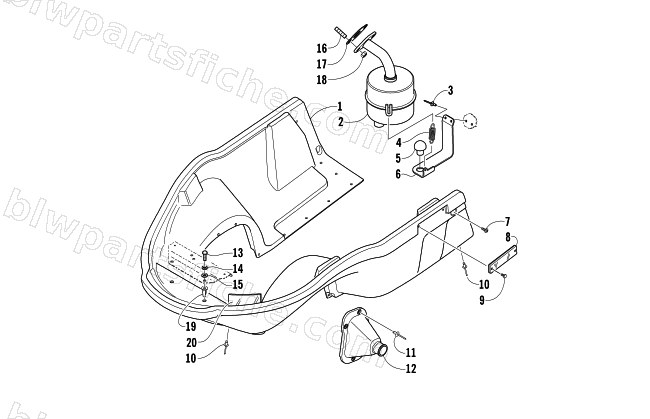

2005 Arctic Cat ZR 120 — BELLY PAN AND EXHAUST ASSEMBLIES
2005 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-748 | BELLYPAN-BLACK | 1 | $341.95 | |
| 2 | 0712-937 | MUFFLER-PTD BLK | 1 | $146.95 | |
| 3 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 4 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 5 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 6 | 0712-914 | BRACKET,MUFFLER SUPPORT-PTD BLK | 1 | $15.11 | |
| 7 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 11 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 12 | 0605-464 | BOOT,TIE ROD-RH | 1 | $42.95 | |
| 12 | 0605-465 | BOOT,TIE ROD-LH | 1 | $42.95 | |
| 13 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 14 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 15 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 16 | 1691-165 | STUD BOLT,M8X16 | 1 | $4.95 | |
| 17 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 18 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 19 | 0623-857 | INSERT, 1/4 - 20 THD - A-R SERIES(AVK) | 1 | $5.78 | |
| 20 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 |
