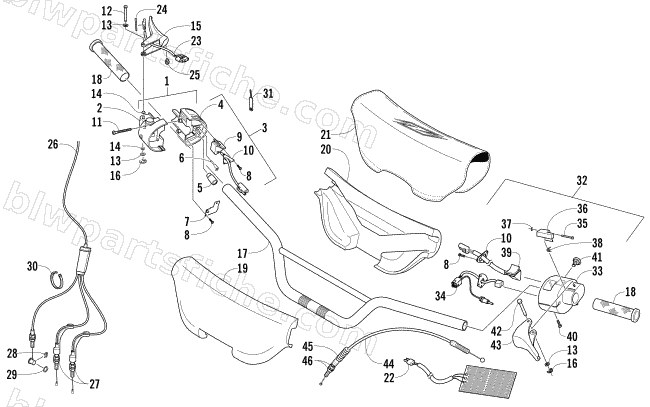

HANDLEBAR AND CONTROLS
2005 Z 440 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-483 | CONTROL,TH-SPLIT 3W W/ ON/OFF | 1 | $210.95 | |
| 2 | 0609-493 | CONTROL,TH-STOP SWITCH HALF | 1 | $106.95 | |
| 3 | 0609-499 | CONTROL,TH-HALF ASSY ON/OFF | 1 | $141.95 | |
| 4 | 0609-494 | CONTROL,TH-WARMER SW HALF ON/OFF | 1 | $41.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-384 | SWITCH ASSY, ON/OFF TW - TH (RH) | 1 | $74.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-363 | LEVER, TH-34MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 0705-360 | HANDLEBAR-PTD BLK | 1 | $61.95 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 21 | 0605-683 | WRAP, HANDLEBAR PAD-Z'S | 1 | $53.95 | |
| 22 | 0609-684 | ELEMENT,HW-ON/OFF W/O CAP | 1 | $110.95 | |
| 23 | 0609-685 | ELEMENT, THUMBWARMER-ON/OFF | 1 | $74.95 | |
| 24 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 25 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 26 | 0687-059 | CABLE,THROTTLE-DUAL VM34 | 1 | $128.95 | |
| 28 | 0124-057 | E-RING | 1 | $1.64 | |
| 29 | 0124-056 | WASHER | 1 | $13.73 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 32 | 0609-393 | CONTROL,BR-MECH W/O LEVER&W/ ON/OFF | 1 | $210.95 | |
| 39 | 0609-385 | SWITCH ASSY,ON/OFF HW-BR (LH) | 1 | $70.95 | |
| 40 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 41 | 0609-474 | KNOB, DIMMER SWITCH | 1 | $13.73 | |
| 42 | 0609-315 | AXLE, LEVER-BRAKE | 1 | $10.95 | |
| 43 | 0609-266 | LEVER, BRAKE | 1 | $32.95 | |
| 44 | 0687-089 | CABLE,BRAKE-AWS5 | 1 | $73.95 | |
| 45 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 46 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 |
