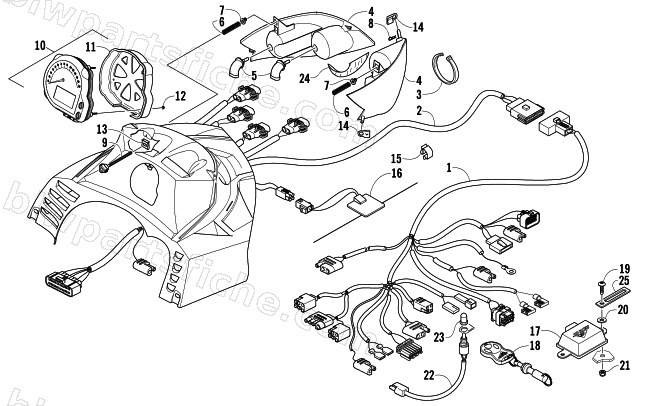

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2005 T660 TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1686-097 | HARNESS, MAIN-05 T660 W/REMOTE-PROD | 1 | $366.95 | |
| 1 | 1686-058 | HARNESS, MAIN (TURBO ST) | 1 | $295.95 | |
| 2 | 1686-075 | HARNESS,HOOD W/REMOTE (05 T660) | 1 | $233.95 | |
| 2 | 1686-073 | HARNESS,HOOD (05 T660) | 1 | $202.95 | |
| 3 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 4 | 0609-530 | HEADLIGHT,RH-ASSY | 1 | $183.95 | |
| 4 | 0609-531 | HEADLIGHT,LH-ASSY | 1 | $183.95 | |
| 5 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 6 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 0620-292 | SPEEDO/TACH-DIGITAL-BLK(4 CAL) | 1 | $773.95 | |
| 11 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 12 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 13 | 1623-189 | CLIP, U-TYPE-HEADLIGHT ADJUSTOR | 1 | $6.06 | |
| 14 | 1623-202 | CLIP, U-TYPE-RH | 1 | $6.75 | |
| 14 | 1623-201 | CLIP, U-TYPE-LH | 1 | $11.95 | |
| 15 | 1623-200 | CLIP, U-TYPE-WIRE HARNESS | 1 | $5.95 | |
| 16 | 0630-189 | ANTENNA MODULE-REMOTE START-AS | 1 | $168.95 | |
| 17 | 0630-213 | CONTROL MODULE, REMOTE START-AS-06 | 1 | $483.95 | |
| 18 | 0630-187 | REMOTE TRANSMITTER-3 BUTTON-AS | 1 | $124.95 | |
| 19 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 20 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 21 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 22 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 23 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 24 | 3606-370 | FOIL, HOOD, RH, HEADLIGHT | 1 | $2.61 | |
| 24 | 3606-371 | FOIL, HOOD, LH, HEADLIGHT | 1 | $2.61 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
