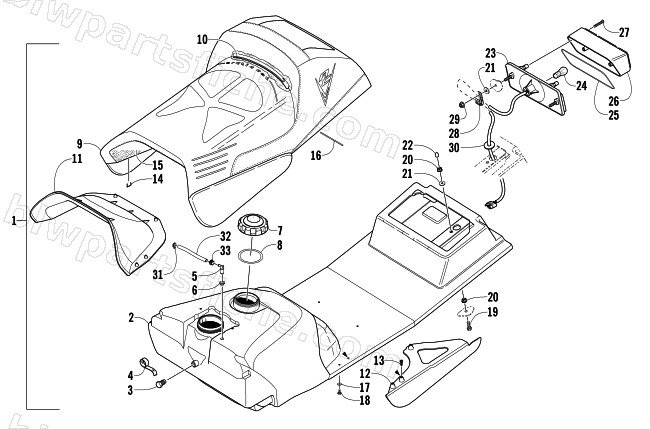

2005 Arctic Cat T660 TURBO — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2005 T660 TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-830 | SEAT,S/P ASS-'05 TURBO TRAIL | 1 | $981.95 | |
| 1 | 1718-849 | SEAT,S/P ASSY-'05 TURBO ST GR | 1 | $801.95 | |
| 1 | 1718-735 | SEAT-S/P ASSY-'05 TURBO ST | 1 | $810.95 | |
| 2 | 0770-676 | R/B 0770-688 | 1 | $402.95 | |
| 2 | 0770-688 | TANK, GAS/SEATBASE-' 05 TURBO | 1 | $323.95 | |
| 8 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 9 | 2706-754 | COVER, SEAT-MFG ASSY | 1 | $498.95 | |
| 10 | 3606-363 | WIRE, SEAT-BENT | 1 | $3.44 | |
| 11 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 12 | 1606-518 | INSERT, SEAT PAD-RH-99 ZR | 1 | $62.95 | |
| 12 | 1606-519 | INSERT, SEAT PAD-LH-99 ZR | 1 | $102.95 | |
| 12 | 2706-944 | COVER,SEAT W/DECAL | 1 | $361.95 | |
| 12 | 2706-606 | COVER,SEAT W/DECAL | 1 | $481.95 | |
| 13 | 0623-783 | SCREW, ST-PAN HD-12 X 1 1/2-TYPE A Z&Y | 1 | $0.95 | |
| 13 | 0617-417 | FOAM, PAD-TUNNEL-02 TRIPLES | 1 | $10.95 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 15 | 3706-310 | FOAM, SEAT-12 GAL(77-82ILD)-.48@5.5 | 1 | $195.95 | |
| 15 | 2706-196 | FOAM, SEAT-12 GAL(77-82IDL),48@5.4 | 1 | $244.95 | |
| 16 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 19 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 24 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 25 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 26 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 27 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 29 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 30 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 31 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 32 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 32 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 33 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 33 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 35 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 35 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 |
