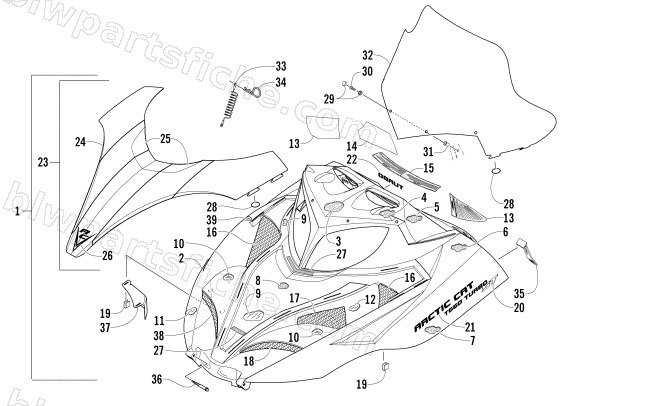

2005 Arctic Cat T660 TURBO ST EFI EARLY BUILD — HOOD AND WINDSHIELD ASSEMBLY
2005 T660 TURBO ST EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-595 | HOOD W/DECALS (TURBO ST) | 1 | $1,422.95 | |
| 2 | 1718-597 | HOOD W/O DECALS (TURBO ST) | 1 | $1,090.95 | |
| 3 | 0717-192 | FOAM, HOOD-HEADLIGHT-CENTER (TURBO) | 1 | $14.95 | |
| 4 | 0717-186 | FOAM,HOOD-RH-GUAGE(TURBO) | 1 | $9.59 | |
| 4 | 0717-187 | FOAM, HOOD-LH-GUAGE(TURBO) | 1 | $141.95 | |
| 5 | 0717-190 | FOAM, HOOD-RH,OUTER GUAGE (TURBO) | 1 | $15.11 | |
| 5 | 0717-191 | FOAM, HOOD-LH,OUTER-GUAGE (TURBO) | 1 | $160.95 | |
| 6 | 0717-188 | FOAM, HOOD-RH-REAR SIDE (TURBO) | 1 | $156.95 | |
| 6 | 0717-189 | FOAM, HOOD-LH-REAR SIDE (TURBO) | 1 | $4.95 | |
| 7 | 0717-184 | FOAM,HOOD-RH SIDE(TURBO) | 1 | $22.01 | |
| 7 | 0717-185 | FOAM,HOOD-LH SIDE(TURBO) | 1 | $22.01 | |
| 8 | 0717-183 | FOAM,HOOD-MIDDLE (TURBO) | 1 | $169.95 | |
| 9 | 3606-376 | FOIL, HOOD, UPPER | 1 | $24.77 | |
| 10 | 3606-372 | FOIL, HOOD, RH, UPPER | 1 | $9.95 | |
| 10 | 3606-373 | FOIL, HOOD, LH, UPPER | 1 | $5.95 | |
| 11 | 3606-374 | FOIL, HOOD, RH, LOWER | 1 | $26.95 | |
| 12 | 3606-375 | FOIL, HOOD, LH, SIDE, UPPER | 1 | $14.95 | |
| 13 | 5611-838 | DECAL, WARNING-GENL & BRAKE-ENG | 1 | $70.95 | |
| 13 | 5611-839 | DECAL, WARNING-GENL & BRAKE-FRENCH | 1 | $79.95 | |
| 14 | 5611-836 | DECAL,CAUTION/WARNING-REV (T660) | 1 | $73.95 | |
| 15 | 5611-837 | DECAL, WARNING-BREAK-IN (T660) | 1 | $65.95 | |
| 16 | 3606-236 | SCREEN, VENT-HOOD-RH REAR-MOLDED-BLK | 1 | $113.95 | |
| 16 | 3606-237 | SCREEN, VENT-HOOD-LH REAR-MOLDED-BLK | 1 | $122.95 | |
| 17 | 3606-928 | SCREEN, VENT-HOOD-LH/MIDDLE-BLK | 1 | $20.63 | |
| 18 | 3606-235 | SCREEN, VENT-HOOD-LH FRT-MOLDED-BLK | 1 | $75.95 | |
| 19 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 20 | 6611-016 | DECAL,HOOD LWR (ST) | 1 | $136.95 | |
| 21 | 5611-600 | EMBLEM, CHROME-"AC T660 TURBO" | 1 | $122.95 | |
| 22 | 6611-229 | EMBLEM,CONSOLE-CHROME (ST) | 1 | $81.95 | |
| 23 | 1718-596 | COVER, HOOD W/DECALS | 1 | $309.95 | |
| 24 | 3606-554 | COVER,HOOD-PTD(FIRE RED) | 1 | $705.95 | |
| 25 | 6611-018 | DECAL, HOOD-CREST-RH | 1 | $35.95 | |
| 25 | 6611-019 | DECAL, HOOD-CREST-LH | 1 | $35.95 | |
| 26 | 5611-618 | EMBLEM, CHROME/RED-FRT BLK TURBO | 1 | $96.95 | |
| 27 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 29 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 30 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 31 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 32 | 3606-475 | WINDSHIELD,MED-RED (TURBO ST) | 1 | $157.95 | |
| 33 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 35 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 36 | 1623-164 | SCREW, SHOULDER-HOOD HINGE (T660) | 1 | $6.89 | |
| 37 | 1670-550 | DEFLECTOR, AIR INTAKE | 1 | $20.63 | |
| 38 | 3606-234 | SCREEN, VENT-HOOD-RH/FRT-MOLDED-BLK | 1 | $117.95 | |
| 39 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 |
